Pillar drilling machines – help to understand your options
Pillar drilling machines – help to understand your options
A drill press is an indispensable tool for both DIY enthusiasts and professional craftsmen who want precise drill holes in wood, metal or plastic. The machine provides stability, smoothness and control that is difficult to achieve with a handheld drill. However, the market offers many models with different features, sizes and price ranges, and it can be difficult to determine which one best suits your needs.
In this article, you will get an overview of the most important considerations you should make before buying a drill press, as well as an introduction to the different types and manufacturers on the market.
The article presents a wide selection of drill presses in different price ranges and with varying features. The aim is to provide an informative overview of the most relevant characteristics so that you can more easily assess which type of machine suits your projects. The information about the products is based on publicly available descriptions from manufacturers and retailers, summarised to provide a clear and neutral overview.
Factors to consider when buying a drill press
When choosing a drill press, you should consider the machine’s capacity, precision and user-friendliness. Here are some of the most important factors that can help you make the right decision.
1. Drilling capacity and motor power
The drilling capacity indicates how large holes the machine can drill, and the motor power determines how effectively it can work in hard materials. For hobby use, a machine with 350–500 watts is often sufficient, while professional tasks require more powerful models of 700 watts or more.
2. Drilling speed and adjustment
Most drill presses have several speed settings that make it possible to adjust the rotation speed to the material. High speed is suitable for wood, while lower speed provides better control in metal. A machine with stepless speed control offers the greatest flexibility.
3. Table and adjustment options
A stable and adjustable drill table makes it easier to work precisely. Consider whether the table can be tilted and height-adjusted so that you can drill at different angles and material thicknesses. An integrated depth stop function is also useful for repeated drilling.
4. Noise and vibrations
A good drill press should run smoothly and without too much vibration. This provides both better precision and a more comfortable working experience. Machines with cast steel construction and a solid base effectively reduce vibrations.
5. Safety and user-friendliness
Safety should always be a priority. Choose a model with a protective screen, emergency stop and good lighting of the work area. A user-friendly machine with easily accessible controls and clear scales makes the work both faster and safer.
6. Price and quality
The price depends on the machine’s size, motor power and extra features. Cheaper models cover most hobby needs, while more expensive machines usually have better precision, longer lifespan and more advanced adjustment options. Consider how often you will use the machine and choose accordingly.
Products in focus

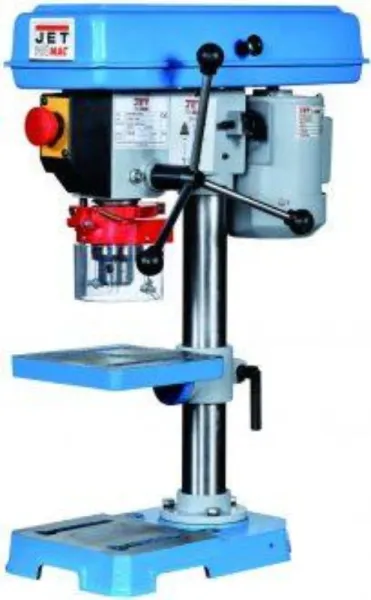

The JET Bench Drill 210 Z is a compact and stable machine designed for precision drilling in various materials. It comes with a keyed chuck (0.5–13 mm) and a 75 mm machine vice, making it ready to use straight out of the box.
The machine is equipped with a safety device combined with chuck drive and an emergency stop located on the front for increased safety during operation. Speed changes are made via belt drive, allowing the drilling speed to be adjusted to the material.
The drill table has two parallel 12 mm openings, and the spindle can move 53 mm in stroke length. With a spindle taper of B16 and a maximum drilling diameter of 10 mm, the machine is suitable for precision tasks on smaller workpieces.
The motor runs on 230V and provides 0.19 kW. The machine has five speeds ranging from 600 to 2600 revolutions per minute, offering flexibility for different drilling tasks. The compact size and weight of 32 kg make it easy to place on a workbench.
The JET 210 Z is designed with a focus on operational reliability and ease of use, making it suitable for both hobby workshops and lighter professional use.
- Five speeds: Adjustable drilling speed from 600 to 2600 rpm via belt drive.
- Safe operation: Equipped with an emergency stop and safety device at the chuck.
- Compact design: Fits well on workbenches in smaller workshops.
- Stable construction: Weight of 32 kg provides good stability during drilling.
- Ready to use: Includes keyed chuck (0.5–13 mm) and 75 mm machine vice.
Pros and cons
- Stable and compact construction
- Multiple speed settings via belt drive
- Built-in emergency stop for increased safety
- Comes with relevant accessories
- Limited drilling capacity of max 10 mm
- Manual speed adjustment requires belt change
Pros and cons
Pros
- Stable and compact construction
- Multiple speed settings via belt drive
- Built-in emergency stop for increased safety
- Comes with relevant accessories
Cons
- Limited drilling capacity of max 10 mm
- Manual speed adjustment requires belt change
Pros
- Stable and compact construction
- Multiple speed settings via belt drive
- Built-in emergency stop for increased safety
- Comes with relevant accessories
Cons
- Limited drilling capacity of max 10 mm
- Manual speed adjustment requires belt change
Specifications
- Model: 210 Z
- Manufacturer: JET
- Motor voltage: 230 V
- Motor power: 0.19 kW
- Spindle taper: B16
- Maximum drilling diameter: Ø10 mm
- Throat depth: 105 mm
- Spindle stroke: 53 mm
- Speeds: 5 steps (600–2600 rpm)
- Drill table: 2 parallel openings of 12 mm
- Slots (number/size): T12
- Weight: 32 kg
- Dimensions (L×W×H): 600 × 420 × 240 mm
- Included accessories: Keyed chuck 0.5–13 mm, machine vice 75 mm
The Axminster Workshop AW315PD is a bench drill constructed from cast iron and machined steel, providing high stability and reducing vibrations during use. It is equipped with a quiet 550 W induction motor that drives the spindle via a belt drive with 12 different speeds ranging from 210 to 2,580 revolutions per minute.
The machine has a keyless chuck with a capacity from 1 to 16 mm, making it easy to change drills without tools. The drilling depth can be precisely adjusted, and the feed handle is equipped with soft grips for better control.
The table height is adjusted via a rack and pinion system, and the entire table can be swung away so that the machine base can be used as support for larger workpieces. An adjustable guard and a front-mounted NVR switch contribute to safe operation.
The AW315PD is suitable for precision drilling in wood, plastic, and metals and is a practical choice for users who want a stable and reliable machine for workshop use.
- Cast iron construction: Provides stability and reduces vibrations during drilling.
- 550 W induction motor: Provides quiet and reliable operation.
- 12 speeds: From 210 to 2,580 rpm for different materials and drilling tasks.
- Keyless chuck: Quick and easy drill changes from 1 to 16 mm.
- Adjustable table: Height and angle can be adjusted via a rack and pinion system.
Pros and cons
- Robust and vibration-damping cast iron construction
- Quiet induction motor with 12 speeds
- Easy adjustment of table height and drilling depth
- Keyless chuck for quick drill changes
- Suitable for precision work in multiple materials
- Not compatible with taper drills
- Relatively heavy construction at 37 kg may require fixed placement
Pros and cons
Pros
- Robust and vibration-damping cast iron construction
- Quiet induction motor with 12 speeds
- Easy adjustment of table height and drilling depth
- Keyless chuck for quick drill changes
- Suitable for precision work in multiple materials
Cons
- Not compatible with taper drills
- Relatively heavy construction at 37 kg may require fixed placement
Pros
- Robust and vibration-damping cast iron construction
- Quiet induction motor with 12 speeds
- Easy adjustment of table height and drilling depth
- Keyless chuck for quick drill changes
- Suitable for precision work in multiple materials
Cons
- Not compatible with taper drills
- Relatively heavy construction at 37 kg may require fixed placement
Specifications
- Model: AW315PD
- Article number (SKU): AX107691
- Voltage: 230 V
- Power: 550 W
- Speeds: 12 steps (210–2,580 rpm)
- Chuck capacity: 1–16 mm
- Chuck type: Keyless
- Chuck stroke: 60 mm
- Column diameter: 60 mm
- Max. distance chuck–spindle: 430 mm
- Max. distance chuck–table: 315 mm
- Max. drilling in mild steel: 16 mm
- Table size: 198 × 198 mm
- Table tilt: 45° – 0° – 45°
- Throat: 127 mm
- Dimensions (L × W × H): 520 × 260 × 840 mm
- Weight: 37 kg
- Plug type: UK 3-pin plug
- User level: Home workshop
The PROMAC Bench Drill 370ELB is a stationary drill designed for precision drilling in metal and other hard materials. The machine is powered by a 230 V motor with an output of 0.75 kW and has a single speed that is adjusted via a V-belt.
It is equipped with a 16 mm self-tightening drill chuck, protective guard, and emergency stop button for increased safety during use. The worktable has adjustable cross slots that provide flexibility when clamping workpieces, and a safety system prevents automatic restart after a power failure.
An integrated LED work light provides focused illumination of the drilling area, improving precision when working with detailed objects. The machine’s construction and weight of 74 kg contribute to stable operation with minimal vibration.
With a speed range from 290 to 2300 revolutions per minute and a drilling depth of up to 80 mm, the 370ELB is suitable for a wide range of drilling tasks in the workshop.
- Single-speed motor: Simple and reliable design with V-belt adjustment.
- Self-tightening drill chuck: Allows quick bit changes without using a key.
- Safety features: Protective guard, emergency stop, and system against automatic restart.
- LED work light: Provides precise illumination of the drilling area.
- Stable construction: 74 kg machine weight reduces vibrations during operation.
Pros and cons
- Robust and stable construction
- Easy to use with V-belt adjustment
- Built-in LED lighting for better work illumination
- Safety system against automatic start
- Suitable for precision drilling in metal
- Single-speed motor may limit flexibility with certain materials
- Relatively heavy machine, requires fixed placement on the workbench
Pros and cons
Pros
- Robust and stable construction
- Easy to use with V-belt adjustment
- Built-in LED lighting for better work illumination
- Safety system against automatic start
- Suitable for precision drilling in metal
Cons
- Single-speed motor may limit flexibility with certain materials
- Relatively heavy machine, requires fixed placement on the workbench
Pros
- Robust and stable construction
- Easy to use with V-belt adjustment
- Built-in LED lighting for better work illumination
- Safety system against automatic start
- Suitable for precision drilling in metal
Cons
- Single-speed motor may limit flexibility with certain materials
- Relatively heavy machine, requires fixed placement on the workbench
Specifications
- Motor voltage: 230 V
- Motor power: 0.75 kW
- Spindle taper: MK-2
- Drilling capacity in steel: Ø16 mm
- Drilling depth: 80 mm
- Number of speeds: 12 steps
- Speed range: 290–2300 min⁻¹
- Table load: 40 kg
- T-slot: 12 mm
- Weight: 74 kg
- Model number / SKU: 370ELB
The Holzmann ZS40HS 400V is a stationary bench drill designed for precision work in metal and wood. It is equipped with an extra-large cast iron worktable that can be adjusted in height and rotated 360 degrees around the central axis. The table has 14 mm T-slots, allowing workpieces and accessories to be securely fastened during operation.
The machine's gear head can be adjusted in height and tilted, providing flexibility when drilling at different angles. The gears are oil-bathed to ensure smooth and quiet operation as well as long service life. The powerful motor delivers continuous drilling power, making the machine suitable for demanding tasks.
For increased safety, the spindle guard is height-adjustable and equipped with a microswitch. The machine comes with a drill chuck (16 mm), reducers (MT4/3 and MT3/2), wedge and drawbar, so it can be put into use immediately.
With a maximum height of over two metres and a weight of 320 kg, the ZS40HS 400V is a stable and solid machine built for precision and durability in workshop environments.
- XL worktable: Large cast iron table (550 × 480 mm) with 360° rotation and T-slots.
- Adjustable gear head: Can be tilted and height-adjusted for flexible drilling.
- Oil-bath gearbox: Ensures smooth operation and reduced wear.
- Powerful motor: Delivers continuous drilling power for demanding tasks.
- Safety feature: Spindle guard with microswitch for increased safety.
Pros and cons
- Solid cast iron construction
- Large work area with flexible adjustment
- Oil-bath gearbox for smooth operation
- Comes with necessary accessories
- Suitable for large and heavy workpieces
- High weight of 320 kg requires fixed placement
- Requires 400V power supply
- Not suitable for small hobby workshops with limited space
Pros and cons
Pros
- Solid cast iron construction
- Large work area with flexible adjustment
- Oil-bath gearbox for smooth operation
- Comes with necessary accessories
- Suitable for large and heavy workpieces
Cons
- High weight of 320 kg requires fixed placement
- Requires 400V power supply
- Not suitable for small hobby workshops with limited space
Pros
- Solid cast iron construction
- Large work area with flexible adjustment
- Oil-bath gearbox for smooth operation
- Comes with necessary accessories
- Suitable for large and heavy workpieces
Cons
- High weight of 320 kg requires fixed placement
- Requires 400V power supply
- Not suitable for small hobby workshops with limited space
Specifications
- Model: ZS40HS 400V
- Manufacturer: Holzmann
- Motor power (S6/S1): 1500/1100 W
- Voltage: 400 V
- Cable length: 2.5 m
- Table size: 550 × 480 mm
- Maximum height: 2120 mm
- Spindle travel range: 120 mm
- Distance spindle–base: 1250 mm
- Maximum distance spindle–table: 790 mm
- Weight: 320 kg
- Included accessories: Drill chuck 16 mm, reducer MT4/3 and MT3/2, wedge, drawbar

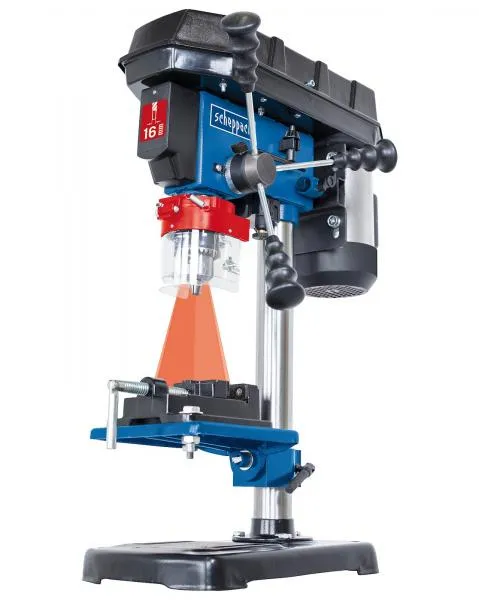

The Scheppach DP16VLS is a stationary bench drill designed for precision drilling in various materials such as metal and wood. The built-in positioning laser helps to mark the drilling point precisely, making the work more efficient and accurate.
The machine is powered by a 500 W motor running on 230 volts and offers five different speeds from 600 to 2600 revolutions per minute. This allows the user to adjust the speed according to the material and drilling task.
The drill chuck ranges from 3 to 16 mm, and the maximum drilling size is 16 mm. The worktable measures 160 x 168 mm, and the column diameter is 46 mm, providing stability during drilling. The spindle travel is 46 mm, and the machine has an overall size of 460 x 255 x 630 mm.
With a weight of 17 kg, the DP16VLS is light enough to be moved when needed, yet robust enough to stand stable during use. A vice is included as standard, increasing flexibility when clamping workpieces.
- Positioning laser: Provides precise marking of the drilling point.
- Flexible speed control: Five speeds from 600 to 2600 rpm.
- Powerful motor: 500 W motor for versatile drilling tasks.
- Stable construction: 46 mm column diameter and solid base for safe operation.
- Included vice: Makes it easier to clamp workpieces during drilling.
Pros and cons
- Built-in laser for precise drilling
- Multiple speed settings for different materials
- Compact and stable construction
- Included vice increases usability
- Limited spindle travel of 46 mm can be a challenge for deeper drilling
- Not intended for heavy industrial use
Pros and cons
Pros
- Built-in laser for precise drilling
- Multiple speed settings for different materials
- Compact and stable construction
- Included vice increases usability
Cons
- Limited spindle travel of 46 mm can be a challenge for deeper drilling
- Not intended for heavy industrial use
Pros
- Built-in laser for precise drilling
- Multiple speed settings for different materials
- Compact and stable construction
- Included vice increases usability
Cons
- Limited spindle travel of 46 mm can be a challenge for deeper drilling
- Not intended for heavy industrial use
Specifications
- Motor power: 500 W – 230 V
- Revolutions/min: 1450
- Speeds: 600 / 900 / 1300 / 1800 / 2600 rpm
- Drill chuck: 3–16 mm
- Max. drilling size: 16 mm
- Worktable: 160 × 168 mm
- Column diameter: 46 mm
- Spindle travel: 46 mm
- Dimensions (L × W × H): 460 × 255 × 630 mm
- Weight: 17 kg
- Included accessory: Vice
- Item number (SKU): 5906810901
The Optimum OPTIdrill DQ 14 is a bench drill designed for precision drilling in metal and other materials. The machine is built from die-cast aluminium and equipped with soft-grip handles, providing stable and comfortable handling.
The drill table can be tilted ±45° and rotated 360°, offering flexibility for various drilling tasks. A clear depth scale and separate emergency stop switch contribute to safe and controlled operation.
The spindle is mounted with precision ball bearings and delivers concentric accuracy below 0.03 mm, making the machine suitable for tasks where precision is crucial. The quick-action chuck and GATES quality belt ensure efficient power transmission.
With a motor power of 0.35 kW and a speed range from 700 to 2500 revolutions per minute distributed over five steps, the machine can be adapted to different materials and drill types. The large base plate with T-slots provides stability during operation.
- Precision drilling: Concentric accuracy below 0.03 mm for high precision.
- Flexible drill table: Can be tilted ±45° and rotated 360° for versatile use.
- Solid construction: Die-cast aluminium with soft-grip handles for stability and comfort.
- Efficient power transmission: Equipped with GATES quality belt and precision ball bearings.
- Safe operation: Separate emergency stop and 24 V DC safety voltage.
Pros and cons
- High precision and stable operation
- Adjustable and rotatable drill table
- Robust aluminium construction
- Compact size suitable for workbenches
- Safety features such as emergency stop and low voltage
- Limited drilling capacity compared to larger pillar drills
- Requires manual speed adjustment via pulleys
Pros and cons
Pros
- High precision and stable operation
- Adjustable and rotatable drill table
- Robust aluminium construction
- Compact size suitable for workbenches
- Safety features such as emergency stop and low voltage
Cons
- Limited drilling capacity compared to larger pillar drills
- Requires manual speed adjustment via pulleys
Pros
- High precision and stable operation
- Adjustable and rotatable drill table
- Robust aluminium construction
- Compact size suitable for workbenches
- Safety features such as emergency stop and low voltage
Cons
- Limited drilling capacity compared to larger pillar drills
- Requires manual speed adjustment via pulleys
Specifications
- Manufacturer: Optimum
- Model: OPTIdrill DQ 14
- SKU: SM-3191040
- Column diameter: 46 mm
- Length: approx. 472 mm
- Width/depth: approx. 283 mm
- Height: approx. 634 mm
- Weight: approx. 18.5 kg
- Drilling capacity in steel (S235JR): 13 mm
- Continuous drilling capacity in steel (S235JR): 12 mm
- Drill table size: 170 × 170 mm
- T-slot size: 14 mm (2 pcs., diagonal type)
- Drill table rotation: 360°
- Drill table angle: ±45°
- Max. distance spindle – drill table: 250 mm
- Max. distance spindle – machine base: 340 mm
- Drive motor power: 0.35 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Speed range: 700–2500 min⁻¹ (5 steps)
- Spindle stroke: 52 mm
- Spindle chuck: B16
- Reach: 104 mm
The Proxxon TBH is a bench drill developed for precision work where stability and accuracy are crucial. The machine is powered by a powerful DC motor with a long service life, ensuring smooth operation and constant torque under load.
The height is easily adjusted via a rack-and-pinion mechanism with a hand crank, providing precise control over the drilling position. The spindle drive is equipped with triple pulleys that allow for three speed levels – 1080, 2400 and 4500 revolutions per minute – so the user can adapt the speed to the material.
The machine has a drilling depth scale with an adjustable stop, and the drill spindle is mounted in precision ball bearings to ensure stable operation. The spindle head has a 1/2" thread and fits an industrial-quality RÖHM geared drill chuck. In addition, the spindle can be equipped with collets (no. 28200) for extra precision work.
With a column of 45 x 500 mm, a worktable of 200 x 200 mm and a weight of approximately 10 kg, the TBH is both stable and compact, making it suitable for smaller workshops and precision tasks in metal and plastic.
- DC motor: Long-lasting motor with stable operation and low vibration.
- Stepless speed control: Three speed levels (1080, 2400 and 4500 rpm) for different materials.
- Precise height adjustment: Rack and pinion with hand crank for easy and accurate adjustment.
- Stable construction: Column and table in robust design for precision drilling.
- Compatibility: Fits RÖHM geared drill chuck and collets no. 28200.
Pros and cons
- Precise and stable operation with ball bearings in the spindle
- Long service life thanks to the DC motor
- Easy height adjustment with hand crank
- Option to use collets for precision drilling
- Compact and solid construction
- Limited drilling capacity compared to larger pillar drills
- Requires manual belt change for speed adjustment
Pros and cons
Pros
- Precise and stable operation with ball bearings in the spindle
- Long service life thanks to the DC motor
- Easy height adjustment with hand crank
- Option to use collets for precision drilling
- Compact and solid construction
Cons
- Limited drilling capacity compared to larger pillar drills
- Requires manual belt change for speed adjustment
Pros
- Precise and stable operation with ball bearings in the spindle
- Long service life thanks to the DC motor
- Easy height adjustment with hand crank
- Option to use collets for precision drilling
- Compact and solid construction
Cons
- Limited drilling capacity compared to larger pillar drills
- Requires manual belt change for speed adjustment
Specifications
- Voltage: 220–240 V
- Speeds: 1080 / 2400 / 4500 rpm
- Spindle stroke: 63 mm
- Height adjustment: 70 mm via hand crank
- Throat depth: 120 mm
- Table working surface: 200 × 200 mm
- Column: 45 × 500 mm
- Max. drilling capacity in steel: 10 mm
- Clamping range: up to 10 mm
- Weight: approx. 10 kg
- Compatible drill chuck: RÖHM geared drill chuck (1/2" thread)
- Option for collets: no. 28200
- SKU: ROL-28124
The Record DP58B Heavy Duty is a stationary bench drill constructed in steel and cast iron to ensure stability and long service life. It is equipped with a powerful induction motor that provides smooth operation and can handle both hardwood and metal materials.
The machine has a cast iron table with slots that make it possible to securely mount a vice. The table can be tilted up to 45 degrees, providing flexibility when drilling at angles. A rack and pinion system makes it easy to adjust the table height.
With 12 different speeds, the user can adjust the speed to the material, making the machine suitable for many types of drilling tasks. The spindle housing is designed to minimise vibrations and ensure precision during work.
The machine has a maximum chuck capacity of 16 mm, a weight of 55 kg and a total height of 1050 mm, making it suitable for both professional and hobby users who want a stable and precise drill.
- 12 speeds: Allows precise adjustment for different materials.
- Cast iron table: Can be tilted up to 45° and has slots for securing a vice.
- Induction motor: Delivers stable power for drilling in both wood and metal.
- Solid construction: Steel and cast iron reduce vibrations and increase precision.
- Ergonomic design: Handles and height adjustment are designed for easy use.
Pros and cons
- Robust and vibration-damping construction
- Flexible speed control with 12 steps
- Suitable for both metal and woodwork
- Cast iron table with angle adjustment
- Long service life thanks to induction motor
- Relatively heavy machine, requires fixed placement
- Requires manual belt change for speed adjustment
Pros and cons
Pros
- Robust and vibration-damping construction
- Flexible speed control with 12 steps
- Suitable for both metal and woodwork
- Cast iron table with angle adjustment
- Long service life thanks to induction motor
Cons
- Relatively heavy machine, requires fixed placement
- Requires manual belt change for speed adjustment
Pros
- Robust and vibration-damping construction
- Flexible speed control with 12 steps
- Suitable for both metal and woodwork
- Cast iron table with angle adjustment
- Long service life thanks to induction motor
Cons
- Relatively heavy machine, requires fixed placement
- Requires manual belt change for speed adjustment
Specifications
- Model: DP58B Heavy Duty
- Manufacturer: Record
- Item number (SKU): RECDP58B-EP
- Voltage: 230V
- Motor input P1/P2: 0.6 kW / 0.37 kW
- Distance to column: 165 mm
- Drilling depth: 80 mm
- Chuck to table: 371 mm
- Chuck to base: 548 mm
- Chuck capacity: 16 mm
- Speeds: 180, 250, 300, 400, 480, 580, 970, 1280, 1410, 1540, 2270, 2740 rpm
- Weight: 55 kg
- Size: H1050 × W270 × D563 mm

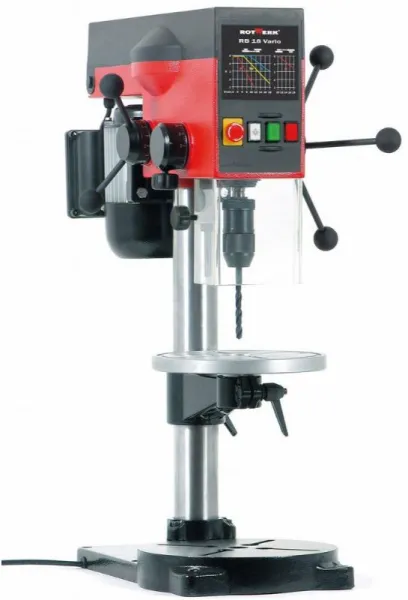

The Rotwerk RB18 Vario is a bench drill designed for precision drilling in metal and other materials. It is equipped with a vario drive that allows stepless spindle speed adjustment without the need to open or disassemble the machine.
The machine is powered by a 600 W motor and is designed to maintain torque throughout the entire speed range. This provides a stable and smooth drilling process, regardless of speed. The drive and construction are made in Germany, supporting the machine’s quality and durability.
The RB18 Vario has a drilling capacity of up to 18 mm in steel and a spindle taper of type MK2. It is equipped with a drill chuck ranging from 1 to 16 mm and offers two speed ranges: 290–880 min⁻¹ and 880–2400 min⁻¹. The machine has a drilling depth of 50 mm and a throat depth of 115 mm.
With a column diameter of 60 mm, a column height of 600 mm, and a total height of 765 mm, the RB18 Vario is a stable and compact machine weighing around 31 kg. It is suitable for both workshops and hobby rooms where precision and flexibility are important.
- Vario drive: Stepless adjustment of spindle speed without disassembling the machine.
- Stable torque: Maintains power throughout the entire speed range.
- German manufacturing: Drive and construction produced in Germany.
- Powerful motor: 600 W motor for demanding drilling tasks.
- Precision drilling: Drilling capacity up to 18 mm in steel.
Pros and cons
- Stepless speed control via vario drive
- Stable and robust construction
- Maintains torque at low speed
- Suitable for both professional and hobby use
- German-made drive for high quality
- Relatively high weight of about 31 kg can make it less mobile
- Limited drilling depth of 50 mm compared to larger pillar drills
Pros and cons
Pros
- Stepless speed control via vario drive
- Stable and robust construction
- Maintains torque at low speed
- Suitable for both professional and hobby use
- German-made drive for high quality
Cons
- Relatively high weight of about 31 kg can make it less mobile
- Limited drilling depth of 50 mm compared to larger pillar drills
Pros
- Stepless speed control via vario drive
- Stable and robust construction
- Maintains torque at low speed
- Suitable for both professional and hobby use
- German-made drive for high quality
Cons
- Relatively high weight of about 31 kg can make it less mobile
- Limited drilling depth of 50 mm compared to larger pillar drills
Specifications
- Model: RB18 Vario
- Manufacturer: Rotwerk
- Mains voltage: 230 V / 50 Hz
- Power: 600 W
- Drill chuck: 1–16 mm
- Spindle taper: MK2
- Drilling capacity in steel: 18 mm
- Speed range I: 290–880 min⁻¹
- Speed range II: 880–2400 min⁻¹
- Torque range I: 5.3–4.0 Nm
- Torque range II: 1.8–1.3 Nm
- Throat depth: 115 mm
- Drilling depth: 50 mm
- Column diameter: 60 mm
- Column height: 600 mm
- Total height: 765 mm
- Weight: approx. 31 kg
- SKU: RB18VARIO
The Axminster Workshop AW285PD is a bench drill designed for smaller workshops and hobby use where precision and stability are important. The machine is made of cast iron and machined steel, providing a solid base and reducing vibrations during operation.
It is powered by a 350 W induction motor that delivers smooth and quiet operation. The user can choose between five belt speeds from 600 to 2,500 revolutions per minute, allowing the speed to be adjusted for different materials and drilling tasks.
The machine is equipped with a keyless chuck that can handle drills from 1 to 13 mm, as well as a depth control that ensures uniform drill holes. The table can be adjusted in height and tilted from 45° to 0° to 45°, providing flexibility for different tasks.
A front-mounted NVR switch and an adjustable safety guard contribute to safe operation. The belt guard also has a safety switch that prevents accidental start-up during speed changes. The combination of compact size and robust construction makes the AW285PD suitable for both beginners and experienced users who need a reliable drill for precision work.
- Solid construction: Cast iron and machined steel provide stability and reduce vibrations.
- Efficient motor: 350 W induction motor with smooth and quiet operation.
- Flexible speed control: Five belt speeds from 600 to 2,500 rpm.
- Keyless chuck: Makes it quick to change drills between 1 and 13 mm.
- Adjustable table: The table can be raised, lowered and tilted for precise positioning.
- Safe operation: NVR switch and safety guard increase safety during use.
Pros and cons
- Robust and vibration-damping construction
- Smooth operation with induction motor
- Multiple speed settings for different materials
- Easy to use with keyless chuck
- Compact size suitable for smaller workshops
- Not suitable for tapping or very heavy drilling tasks
- UK 3-pin plug may require an adapter when used in Denmark
Pros and cons
Pros
- Robust and vibration-damping construction
- Smooth operation with induction motor
- Multiple speed settings for different materials
- Easy to use with keyless chuck
- Compact size suitable for smaller workshops
Cons
- Not suitable for tapping or very heavy drilling tasks
- UK 3-pin plug may require an adapter when used in Denmark
Pros
- Robust and vibration-damping construction
- Smooth operation with induction motor
- Multiple speed settings for different materials
- Easy to use with keyless chuck
- Compact size suitable for smaller workshops
Cons
- Not suitable for tapping or very heavy drilling tasks
- UK 3-pin plug may require an adapter when used in Denmark
Specifications
- Model: AW285PD
- Item number (SKU): AX107690
- Voltage: 230 V
- Power: 350 W
- Speeds: 5 steps (600–2,500 rpm)
- Chuck capacity: 1–13 mm
- Chuck type: Keyless
- Chuck stroke: 50 mm
- Column diameter: 46 mm
- Max. distance chuck–spindle: 380 mm
- Max. distance chuck–table: 285 mm
- Max. drilling in mild steel: 13 mm
- Table size: 165 × 165 mm
- Table tilt: 45° – 0° – 45°
- Throat: 105 mm
- Dimensions (L × W × H): 500 × 280 × 735 mm
- Weight: 26 kg
- Plug type: UK 3-pin

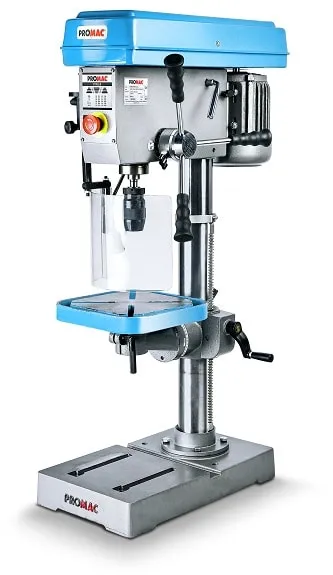

The PROMAC Bench Drill 371ELB is a stationary drill designed for precision work in metal and other hard materials. It is powered by a 400-volt motor with an output of 0.75 kW, providing stable operation and sufficient power for most drilling tasks in the workshop.
The machine has speed adjustment via a V-belt and offers 12 different speed levels in the range of 290–2300 revolutions per minute. This makes it possible to adapt the speed to different materials and drill diameters.
The drill chuck is self-tightening and can handle drills up to 16 mm in diameter. The worktable is equipped with adjustable cross slots and can support up to 40 kg, providing flexibility when clamping workpieces.
For increased safety, the machine is equipped with an emergency stop, protective screen, and a system that prevents automatic restart after a power failure. An integrated LED lamp provides directed lighting of the drilling area so that the work can be carried out with high precision.
- Motor: 400 V, 0.75 kW with 12 speed steps via V-belt.
- Drilling capacity: Up to 16 mm in steel.
- Safety: Emergency stop, protective screen, and anti-restart system.
- Worktable: Adjustable cross slots and load capacity up to 40 kg.
- Lighting: Built-in LED lamp for better visibility during work.
Pros and cons
- Stable and powerful motor for precision drilling
- Ability to adjust speed via V-belt
- Safety features such as emergency stop and protective screen
- LED work light for better visibility
- Solid construction with high weight for stability
- Requires 400 V power supply, which may limit use in private workshops
- Manual speed adjustment via V-belt can take some time
Pros and cons
Pros
- Stable and powerful motor for precision drilling
- Ability to adjust speed via V-belt
- Safety features such as emergency stop and protective screen
- LED work light for better visibility
- Solid construction with high weight for stability
Cons
- Requires 400 V power supply, which may limit use in private workshops
- Manual speed adjustment via V-belt can take some time
Pros
- Stable and powerful motor for precision drilling
- Ability to adjust speed via V-belt
- Safety features such as emergency stop and protective screen
- LED work light for better visibility
- Solid construction with high weight for stability
Cons
- Requires 400 V power supply, which may limit use in private workshops
- Manual speed adjustment via V-belt can take some time
Specifications
- Motor voltage: 400 V
- Motor power: 0.75 kW
- Spindle taper: MK-2
- Drilling capacity in steel: Ø16 mm
- Drilling depth: 80 mm
- Number of speeds: 12
- Speed range: 290–2300 min⁻¹
- Table load: 40 kg
- T-slot: 12 mm
- Weight: 74 kg
- Model number: 371ELB

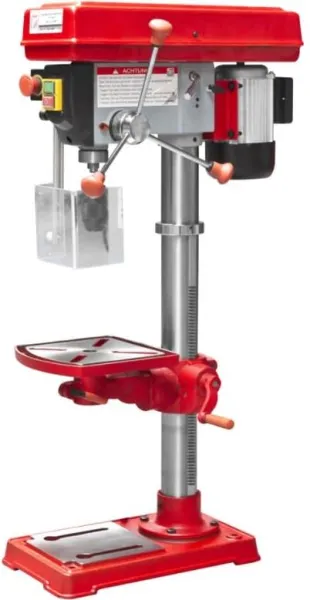

The Holzmann SB4116HM 230V is a bench drill designed with a focus on stability and accuracy. The machine has a solid, polished base with T-slots, providing a secure foundation during work. The stainless steel column contributes to the machine's rigidity and precision during drilling.
The motor is an aluminium motor with IP54 protection, providing a good balance between performance and durability. The worktable can be tilted from -45° to +45° and rotated 360° around its axis, making it possible to drill at different angles and positions.
The machine comes with a self-tightening drill chuck (3–16 mm, B16), and the spindle is equipped with a protective cover for increased safety. The combination of adjustability, power and precision makes it suitable for both metal and woodwork in smaller workshops.
With a maximum drilling capacity of 16 mm, 12 speed steps from 180 to 2740 revolutions per minute and a maximum height of 1060 mm, the SB4116HM offers a flexible working platform for many types of drilling tasks.
- Powerful motor: 600 W (S1) / 900 W (S6) with IP54 protection.
- Adjustable worktable: Can be tilted from -45° to +45° and rotated 360°.
- Solid construction: Stainless steel column and polished base with T-slots.
- Flexible drilling capacity: Up to 16 mm drilling diameter and 12 speed steps.
- Safety: Spindle guard and stable base for precise work.
Pros and cons
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable
- Powerful motor with IP54 protection
- Suitable for both metal and woodwork
- Comes with self-tightening drill chuck
- Relatively high weight of 50 kg can make it less mobile
- Requires a fixed workstation and correct installation for optimal precision
Pros and cons
Pros
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable
- Powerful motor with IP54 protection
- Suitable for both metal and woodwork
- Comes with self-tightening drill chuck
Cons
- Relatively high weight of 50 kg can make it less mobile
- Requires a fixed workstation and correct installation for optimal precision
Pros
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable
- Powerful motor with IP54 protection
- Suitable for both metal and woodwork
- Comes with self-tightening drill chuck
Cons
- Relatively high weight of 50 kg can make it less mobile
- Requires a fixed workstation and correct installation for optimal precision
Specifications
- Model: SB4116HM 230V
- Motor power (S1/S6): 600 W / 900 W
- Voltage: 230 V
- Table dimensions: 250 × 250 mm
- Maximum height: 1060 mm
- Distance from drill chuck to column: 170 mm
- Maximum drilling stroke: 80 mm
- Base plate: 270 × 450 mm
- Maximum drilling capacity: 16 mm
- Spindle speed: 12 steps, 180–2740 min⁻¹
- Distance from spindle to base plate: 695 mm
- Distance between spindle and table: 495 mm
- Net weight: 50 kg
- Package dimensions (L×W×H): 895 × 490 × 290 mm
- Delivery includes: Self-tightening drill chuck 3–16 mm, B16
The Optimum OPTIdrill DQ 22 is a bench drill designed for precision work and stable operation. The machine is equipped with a separate emergency stop switch and drilling depth stop, which increases safety and allows repetitive drilling operations with high accuracy.
The drill table is precisely machined and can both tilt ±45° and rotate 360°, providing flexibility for various drilling tasks. The table has diagonally running T-slots and a surrounding coolant tray, making it suitable for metalworking.
The machine has a lever arm made of die-cast aluminium with a soft-grip handle, and the spindle is mounted with precision ball bearings to ensure concentric accuracy of less than 0.03 mm. The quick-action drill chuck and GATES quality belt contribute to smooth and reliable operation.
With a speed range from 300 to 2300 revolutions per minute distributed over 12 steps, the machine can be adapted to different materials and drill types. It is powered by a 0.55 kW motor at 230 V, making it suitable for standard workshop installations.
- Precision spindle: Guaranteed concentric accuracy below 0.03 mm.
- Flexible drill table: Can tilt ±45° and rotate 360° for versatile use.
- Solid construction: Lever arm in die-cast aluminium and heavy base plate with T-slots.
- Variable speed: 12-step gearbox with speed range from 300 to 2300 min⁻¹.
- Safe operation: Separate emergency stop and 24 V DC safety voltage.
Pros and cons
- High precision and stability during drilling
- Adjustable drill table with large freedom of movement
- Robust construction in aluminium and steel
- Wide speed range with 12 steps
- Suitable for precision work in metal
- Relatively high weight of about 42 kg can make moving difficult
- Requires a fixed workstation and correct installation for optimal stability
Pros and cons
Pros
- High precision and stability during drilling
- Adjustable drill table with large freedom of movement
- Robust construction in aluminium and steel
- Wide speed range with 12 steps
- Suitable for precision work in metal
Cons
- Relatively high weight of about 42 kg can make moving difficult
- Requires a fixed workstation and correct installation for optimal stability
Pros
- High precision and stability during drilling
- Adjustable drill table with large freedom of movement
- Robust construction in aluminium and steel
- Wide speed range with 12 steps
- Suitable for precision work in metal
Cons
- Relatively high weight of about 42 kg can make moving difficult
- Requires a fixed workstation and correct installation for optimal stability
Specifications
- Model: OPTIdrill DQ 22
- Supply voltage: 230 V
- Power: 0.55 kW
- Mains frequency: 50 Hz
- Speed range: 300–2300 min⁻¹ (12 steps)
- Column diameter: 70 mm
- Drilling capacity in steel (S235JR): 20 mm
- Continuous drilling capacity in steel (S235JR): 16 mm
- Drill table: 270 × 270 mm, T-slot 14 mm, 2 slots, rotation 360°, angle ±45°
- Max. distance spindle – drill table: 460 mm
- Max. distance spindle – machine base: 639 mm
- Spindle chuck: MK 2
- Spindle stroke: 85 mm
- Reach: 169 mm
- Dimensions (L×W×H): approx. 700 × 351 × 1006 mm
- Weight: approx. 41.7 kg
- Load capacity drill table: 15 kg

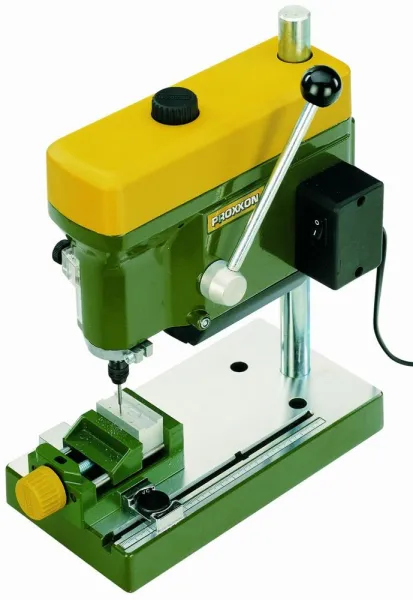

The Proxxon TBM 220 is a small but powerful bench drill designed for precision work. It can drill holes down to 0.5 mm, making it suitable for tasks where accuracy and control are more important than raw power.
The machine is equipped with a ground worktable made of die-cast aluminium measuring 220 x 120 mm, providing a stable and flat surface. The table has both a parallel stop and a scale, making it easier to work accurately with repeated drillings.
The hard chrome-plated steel column measuring 20 x 280 mm ensures stability, while the die-cast aluminium arm with precise guides contributes to the machine’s rigid and low-vibration construction.
The TBM 220 is powered by a quiet and durable VDE-tested motor with a three-step belt drive, providing three different speeds: 1,800, 4,700, and 8,500 revolutions per minute. By changing the belt, the user can choose between high speed for small drills and lower speed with increased torque for larger drills.
The machine has a spindle stroke of 30 mm and a throat depth of 140 mm (distance from the centre of the column to the centre of the drill). It comes with six MICROMOT collets in sizes 1.0 – 3.2 mm and a thread for mounting a keyed drill chuck.
- Precision drilling: Can drill holes down to 0.5 mm in diameter.
- Three-step belt drive: Allows for three speeds – 1,800, 4,700, and 8,500 rpm.
- Stable construction: Ground worktable and hard chrome-plated steel column ensure precision.
- Quality motor: VDE-tested motor with low noise level and long service life.
- Included collets: Six MICROMOT collets from 1.0 to 3.2 mm.
Pros and cons
- High precision and stability for small drilling tasks
- Three speed levels adapted for different materials and drill sizes
- Compact and robust die-cast aluminium construction
- Quiet and reliable motor
- Suitable for model building, electronics, and fine mechanics
- Limited drilling capacity for larger materials
- Speed change requires manual adjustment of the belt
Pros and cons
Pros
- High precision and stability for small drilling tasks
- Three speed levels adapted for different materials and drill sizes
- Compact and robust die-cast aluminium construction
- Quiet and reliable motor
- Suitable for model building, electronics, and fine mechanics
Cons
- Limited drilling capacity for larger materials
- Speed change requires manual adjustment of the belt
Pros
- High precision and stability for small drilling tasks
- Three speed levels adapted for different materials and drill sizes
- Compact and robust die-cast aluminium construction
- Quiet and reliable motor
- Suitable for model building, electronics, and fine mechanics
Cons
- Limited drilling capacity for larger materials
- Speed change requires manual adjustment of the belt
Specifications
- Model: TBM 220
- Article number (SKU): ROL-28128
- Voltage: 220–240 V
- Power: 85 W
- Frequency: 50–60 Hz
- Speed: 1,800 / 4,700 / 8,500 rpm
- Throat depth: 140 mm
- Spindle stroke: 30 mm
- Worktable: 220 x 120 mm, ground die-cast aluminium
- Column: 20 x 280 mm, hard chrome-plated steel
- Collets: 6 pcs. MICROMOT (1.0 – 3.2 mm)
- Thread for drill chuck: 3/8"
- EAN / Barcode: ROL-28128
The Axminster Professional AP20BD is a bench drill designed to deliver precise results and stable operation in workshop environments. The machine is equipped with a precision spindle running in NSK ball bearings, which reduces vibrations and ensures smooth rotation during drilling.
The drive system uses Multi-V belts, which provide good grip and contribute to quiet and stable operation. The spindle unit is solidly integrated into the headstock, increasing the machine's overall rigidity and precision.
Safety is prioritised with an electrically locked chuck guard that prevents accidental start-up, as well as a safety switch that cuts power when the belt guard is opened. A built-in LED work light provides good illumination of the work area.
The machine has an ergonomic cast iron handle with a rubber grip for comfortable handling. The keyless chuck allows quick bit changes, and the table can be adjusted via rack and pinion. An improved depth stop allows drilling with high accuracy.
With its compact size and solid construction, the AP20BD is suitable for both professional workshops and demanding hobby users who want a stable and precise drill.
- Precision spindle with NSK bearings: Provides stable and vibration-free drilling.
- Multi-V belt drive: Ensures smooth power transmission and low noise level.
- Safety switch: Prevents operation with open cover or without guard.
- LED work light: Improves visibility during work.
- Ergonomic design: Cast iron handle with rubber grip for comfortable handling.
- Keyless chuck: Quick and easy bit changes.
Pros and cons
- Robust construction with high precision
- Low vibration and stable operation
- Safety switch and protection against accidental start
- Easy adjustment of table and drilling depth
- Built-in LED lighting for better work light
- Relatively high weight of 82 kg may limit mobility
- Requires a fixed workspace with plenty of room
- Manual speed adjustment via pulleys
Pros and cons
Pros
- Robust construction with high precision
- Low vibration and stable operation
- Safety switch and protection against accidental start
- Easy adjustment of table and drilling depth
- Built-in LED lighting for better work light
Cons
- Relatively high weight of 82 kg may limit mobility
- Requires a fixed workspace with plenty of room
- Manual speed adjustment via pulleys
Pros
- Robust construction with high precision
- Low vibration and stable operation
- Safety switch and protection against accidental start
- Easy adjustment of table and drilling depth
- Built-in LED lighting for better work light
Cons
- Relatively high weight of 82 kg may limit mobility
- Requires a fixed workspace with plenty of room
- Manual speed adjustment via pulleys
Specifications
- Model: AP20BD
- Voltage: 230 V
- Power: 750 W
- Speed range: 120 – 2,580 rpm
- Chuck capacity: 1 – 16 mm (keyless)
- Chuck travel: 80 mm
- Morse taper: 2 MT
- Spindle taper: 2 MT
- Column diameter: 80 mm
- Max. drilling in mild steel: 20 mm
- Max. distance chuck to base: 500 mm
- Max. distance chuck to table: 325 mm
- Table size: 290 × 290 mm
- Table tilt: 45° – 0° – 45°
- Base size: 450 × 270 mm
- Throat depth: 178 mm
- Overall size (L × W × H): 670 × 360 × 1,020 mm
- Net weight: 82 kg
- Plug type: EU 2-pin plug
- Classification: Tradesman/Professional

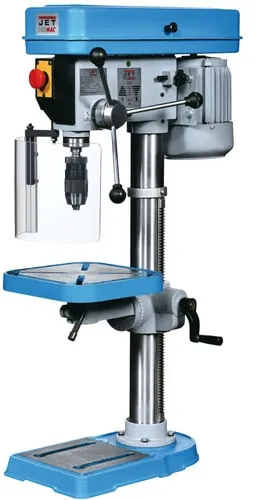

The PROMAC Bench Drill 212 is a stationary drill designed for precision work in metal and other hard materials. It is equipped with a single-speed motor and speed adjustment via V-belt, providing stable operation and the ability to adapt the speed to different drilling tasks.
The machine comes with a 16 mm self-tightening drill chuck, protective guard and emergency stop button, which increase safety during use. The table is adjustable and has cross slots, making it easier to securely fasten workpieces during drilling.
A built-in safety system prevents automatic restart after a power failure, contributing to a safer working process. The compact size and weight of 45 kg make it suitable for both workshops and smaller production environments where a stable and precise drill is needed.
- Drilling capacity of 16 mm: Suitable for drilling in steel and other metals.
- Speed adjustment via V-belt: Provides flexibility depending on material and drill type.
- Self-tightening drill chuck: Quick and secure fastening of drills without the use of a key.
- Adjustable table with cross slots: Enables precise positioning of workpieces.
- Safety system against automatic start: Increases safety in the event of a power failure.
Pros and cons
- Stable construction suitable for workshop use
- Easy speed adjustment via V-belt
- Safety features such as emergency stop and protective guard
- Adjustable table for flexible working position
- Only one motor speed may limit flexibility for special tasks
- Requires manual belt change to adjust speed
Pros and cons
Pros
- Stable construction suitable for workshop use
- Easy speed adjustment via V-belt
- Safety features such as emergency stop and protective guard
- Adjustable table for flexible working position
Cons
- Only one motor speed may limit flexibility for special tasks
- Requires manual belt change to adjust speed
Pros
- Stable construction suitable for workshop use
- Easy speed adjustment via V-belt
- Safety features such as emergency stop and protective guard
- Adjustable table for flexible working position
Cons
- Only one motor speed may limit flexibility for special tasks
- Requires manual belt change to adjust speed
Specifications
- Motor voltage: 230 V
- Motor power: 0.37 kW
- Spindle taper: MK-2
- Drilling capacity in steel: Ø16 mm
- Drilling depth: 80 mm
- Number of speeds: 5 steps
- Speed range: 490–2510 min⁻¹
- Max. table load: 30 kg
- T-slot: 12 mm
- Weight: 45 kg
- Dimensions (A–J): A: 970 mm, B: 560 mm, C: 640 mm, D: 168 mm, E: 73 mm, F: 40 mm, G: 445 mm, H: 320 mm, I: 265 mm, J: 265 mm
- Article number (SKU): 212
Product descriptions
The JET Bench Drill 210 Z is a compact and stable machine designed for precision drilling in various materials. It comes with a keyed chuck (0.5–13 mm) and a 75 mm machine vice, making it ready to use straight out of the box.
The machine is equipped with a safety device combined with chuck drive and an emergency stop located on the front for increased safety during operation. Speed changes are made via belt drive, allowing the drilling speed to be adjusted to the material.
The drill table has two parallel 12 mm openings, and the spindle can move 53 mm in stroke length. With a spindle taper of B16 and a maximum drilling diameter of 10 mm, the machine is suitable for precision tasks on smaller workpieces.
The motor runs on 230V and provides 0.19 kW. The machine has five speeds ranging from 600 to 2600 revolutions per minute, offering flexibility for different drilling tasks. The compact size and weight of 32 kg make it easy to place on a workbench.
The JET 210 Z is designed with a focus on operational reliability and ease of use, making it suitable for both hobby workshops and lighter professional use.
- Five speeds: Adjustable drilling speed from 600 to 2600 rpm via belt drive.
- Safe operation: Equipped with an emergency stop and safety device at the chuck.
- Compact design: Fits well on workbenches in smaller workshops.
- Stable construction: Weight of 32 kg provides good stability during drilling.
- Ready to use: Includes keyed chuck (0.5–13 mm) and 75 mm machine vice.
Pros and cons
- Stable and compact construction
- Multiple speed settings via belt drive
- Built-in emergency stop for increased safety
- Comes with relevant accessories
- Limited drilling capacity of max 10 mm
- Manual speed adjustment requires belt change
Pros and cons
Pros
- Stable and compact construction
- Multiple speed settings via belt drive
- Built-in emergency stop for increased safety
- Comes with relevant accessories
Cons
- Limited drilling capacity of max 10 mm
- Manual speed adjustment requires belt change
Pros
- Stable and compact construction
- Multiple speed settings via belt drive
- Built-in emergency stop for increased safety
- Comes with relevant accessories
Cons
- Limited drilling capacity of max 10 mm
- Manual speed adjustment requires belt change
Specifications
- Model: 210 Z
- Manufacturer: JET
- Motor voltage: 230 V
- Motor power: 0.19 kW
- Spindle taper: B16
- Maximum drilling diameter: Ø10 mm
- Throat depth: 105 mm
- Spindle stroke: 53 mm
- Speeds: 5 steps (600–2600 rpm)
- Drill table: 2 parallel openings of 12 mm
- Slots (number/size): T12
- Weight: 32 kg
- Dimensions (L×W×H): 600 × 420 × 240 mm
- Included accessories: Keyed chuck 0.5–13 mm, machine vice 75 mm
The Axminster Workshop AW315PD is a bench drill constructed from cast iron and machined steel, providing high stability and reducing vibrations during use. It is equipped with a quiet 550 W induction motor that drives the spindle via a belt drive with 12 different speeds ranging from 210 to 2,580 revolutions per minute.
The machine has a keyless chuck with a capacity from 1 to 16 mm, making it easy to change drills without tools. The drilling depth can be precisely adjusted, and the feed handle is equipped with soft grips for better control.
The table height is adjusted via a rack and pinion system, and the entire table can be swung away so that the machine base can be used as support for larger workpieces. An adjustable guard and a front-mounted NVR switch contribute to safe operation.
The AW315PD is suitable for precision drilling in wood, plastic, and metals and is a practical choice for users who want a stable and reliable machine for workshop use.
- Cast iron construction: Provides stability and reduces vibrations during drilling.
- 550 W induction motor: Provides quiet and reliable operation.
- 12 speeds: From 210 to 2,580 rpm for different materials and drilling tasks.
- Keyless chuck: Quick and easy drill changes from 1 to 16 mm.
- Adjustable table: Height and angle can be adjusted via a rack and pinion system.
Pros and cons
- Robust and vibration-damping cast iron construction
- Quiet induction motor with 12 speeds
- Easy adjustment of table height and drilling depth
- Keyless chuck for quick drill changes
- Suitable for precision work in multiple materials
- Not compatible with taper drills
- Relatively heavy construction at 37 kg may require fixed placement
Pros and cons
Pros
- Robust and vibration-damping cast iron construction
- Quiet induction motor with 12 speeds
- Easy adjustment of table height and drilling depth
- Keyless chuck for quick drill changes
- Suitable for precision work in multiple materials
Cons
- Not compatible with taper drills
- Relatively heavy construction at 37 kg may require fixed placement
Pros
- Robust and vibration-damping cast iron construction
- Quiet induction motor with 12 speeds
- Easy adjustment of table height and drilling depth
- Keyless chuck for quick drill changes
- Suitable for precision work in multiple materials
Cons
- Not compatible with taper drills
- Relatively heavy construction at 37 kg may require fixed placement
Specifications
- Model: AW315PD
- Article number (SKU): AX107691
- Voltage: 230 V
- Power: 550 W
- Speeds: 12 steps (210–2,580 rpm)
- Chuck capacity: 1–16 mm
- Chuck type: Keyless
- Chuck stroke: 60 mm
- Column diameter: 60 mm
- Max. distance chuck–spindle: 430 mm
- Max. distance chuck–table: 315 mm
- Max. drilling in mild steel: 16 mm
- Table size: 198 × 198 mm
- Table tilt: 45° – 0° – 45°
- Throat: 127 mm
- Dimensions (L × W × H): 520 × 260 × 840 mm
- Weight: 37 kg
- Plug type: UK 3-pin plug
- User level: Home workshop
The PROMAC Bench Drill 370ELB is a stationary drill designed for precision drilling in metal and other hard materials. The machine is powered by a 230 V motor with an output of 0.75 kW and has a single speed that is adjusted via a V-belt.
It is equipped with a 16 mm self-tightening drill chuck, protective guard, and emergency stop button for increased safety during use. The worktable has adjustable cross slots that provide flexibility when clamping workpieces, and a safety system prevents automatic restart after a power failure.
An integrated LED work light provides focused illumination of the drilling area, improving precision when working with detailed objects. The machine’s construction and weight of 74 kg contribute to stable operation with minimal vibration.
With a speed range from 290 to 2300 revolutions per minute and a drilling depth of up to 80 mm, the 370ELB is suitable for a wide range of drilling tasks in the workshop.
- Single-speed motor: Simple and reliable design with V-belt adjustment.
- Self-tightening drill chuck: Allows quick bit changes without using a key.
- Safety features: Protective guard, emergency stop, and system against automatic restart.
- LED work light: Provides precise illumination of the drilling area.
- Stable construction: 74 kg machine weight reduces vibrations during operation.
Pros and cons
- Robust and stable construction
- Easy to use with V-belt adjustment
- Built-in LED lighting for better work illumination
- Safety system against automatic start
- Suitable for precision drilling in metal
- Single-speed motor may limit flexibility with certain materials
- Relatively heavy machine, requires fixed placement on the workbench
Pros and cons
Pros
- Robust and stable construction
- Easy to use with V-belt adjustment
- Built-in LED lighting for better work illumination
- Safety system against automatic start
- Suitable for precision drilling in metal
Cons
- Single-speed motor may limit flexibility with certain materials
- Relatively heavy machine, requires fixed placement on the workbench
Pros
- Robust and stable construction
- Easy to use with V-belt adjustment
- Built-in LED lighting for better work illumination
- Safety system against automatic start
- Suitable for precision drilling in metal
Cons
- Single-speed motor may limit flexibility with certain materials
- Relatively heavy machine, requires fixed placement on the workbench
Specifications
- Motor voltage: 230 V
- Motor power: 0.75 kW
- Spindle taper: MK-2
- Drilling capacity in steel: Ø16 mm
- Drilling depth: 80 mm
- Number of speeds: 12 steps
- Speed range: 290–2300 min⁻¹
- Table load: 40 kg
- T-slot: 12 mm
- Weight: 74 kg
- Model number / SKU: 370ELB
The Holzmann ZS40HS 400V is a stationary bench drill designed for precision work in metal and wood. It is equipped with an extra-large cast iron worktable that can be adjusted in height and rotated 360 degrees around the central axis. The table has 14 mm T-slots, allowing workpieces and accessories to be securely fastened during operation.
The machine's gear head can be adjusted in height and tilted, providing flexibility when drilling at different angles. The gears are oil-bathed to ensure smooth and quiet operation as well as long service life. The powerful motor delivers continuous drilling power, making the machine suitable for demanding tasks.
For increased safety, the spindle guard is height-adjustable and equipped with a microswitch. The machine comes with a drill chuck (16 mm), reducers (MT4/3 and MT3/2), wedge and drawbar, so it can be put into use immediately.
With a maximum height of over two metres and a weight of 320 kg, the ZS40HS 400V is a stable and solid machine built for precision and durability in workshop environments.
- XL worktable: Large cast iron table (550 × 480 mm) with 360° rotation and T-slots.
- Adjustable gear head: Can be tilted and height-adjusted for flexible drilling.
- Oil-bath gearbox: Ensures smooth operation and reduced wear.
- Powerful motor: Delivers continuous drilling power for demanding tasks.
- Safety feature: Spindle guard with microswitch for increased safety.
Pros and cons
- Solid cast iron construction
- Large work area with flexible adjustment
- Oil-bath gearbox for smooth operation
- Comes with necessary accessories
- Suitable for large and heavy workpieces
- High weight of 320 kg requires fixed placement
- Requires 400V power supply
- Not suitable for small hobby workshops with limited space
Pros and cons
Pros
- Solid cast iron construction
- Large work area with flexible adjustment
- Oil-bath gearbox for smooth operation
- Comes with necessary accessories
- Suitable for large and heavy workpieces
Cons
- High weight of 320 kg requires fixed placement
- Requires 400V power supply
- Not suitable for small hobby workshops with limited space
Pros
- Solid cast iron construction
- Large work area with flexible adjustment
- Oil-bath gearbox for smooth operation
- Comes with necessary accessories
- Suitable for large and heavy workpieces
Cons
- High weight of 320 kg requires fixed placement
- Requires 400V power supply
- Not suitable for small hobby workshops with limited space
Specifications
- Model: ZS40HS 400V
- Manufacturer: Holzmann
- Motor power (S6/S1): 1500/1100 W
- Voltage: 400 V
- Cable length: 2.5 m
- Table size: 550 × 480 mm
- Maximum height: 2120 mm
- Spindle travel range: 120 mm
- Distance spindle–base: 1250 mm
- Maximum distance spindle–table: 790 mm
- Weight: 320 kg
- Included accessories: Drill chuck 16 mm, reducer MT4/3 and MT3/2, wedge, drawbar
The Scheppach DP16VLS is a stationary bench drill designed for precision drilling in various materials such as metal and wood. The built-in positioning laser helps to mark the drilling point precisely, making the work more efficient and accurate.
The machine is powered by a 500 W motor running on 230 volts and offers five different speeds from 600 to 2600 revolutions per minute. This allows the user to adjust the speed according to the material and drilling task.
The drill chuck ranges from 3 to 16 mm, and the maximum drilling size is 16 mm. The worktable measures 160 x 168 mm, and the column diameter is 46 mm, providing stability during drilling. The spindle travel is 46 mm, and the machine has an overall size of 460 x 255 x 630 mm.
With a weight of 17 kg, the DP16VLS is light enough to be moved when needed, yet robust enough to stand stable during use. A vice is included as standard, increasing flexibility when clamping workpieces.
- Positioning laser: Provides precise marking of the drilling point.
- Flexible speed control: Five speeds from 600 to 2600 rpm.
- Powerful motor: 500 W motor for versatile drilling tasks.
- Stable construction: 46 mm column diameter and solid base for safe operation.
- Included vice: Makes it easier to clamp workpieces during drilling.
Pros and cons
- Built-in laser for precise drilling
- Multiple speed settings for different materials
- Compact and stable construction
- Included vice increases usability
- Limited spindle travel of 46 mm can be a challenge for deeper drilling
- Not intended for heavy industrial use
Pros and cons
Pros
- Built-in laser for precise drilling
- Multiple speed settings for different materials
- Compact and stable construction
- Included vice increases usability
Cons
- Limited spindle travel of 46 mm can be a challenge for deeper drilling
- Not intended for heavy industrial use
Pros
- Built-in laser for precise drilling
- Multiple speed settings for different materials
- Compact and stable construction
- Included vice increases usability
Cons
- Limited spindle travel of 46 mm can be a challenge for deeper drilling
- Not intended for heavy industrial use
Specifications
- Motor power: 500 W – 230 V
- Revolutions/min: 1450
- Speeds: 600 / 900 / 1300 / 1800 / 2600 rpm
- Drill chuck: 3–16 mm
- Max. drilling size: 16 mm
- Worktable: 160 × 168 mm
- Column diameter: 46 mm
- Spindle travel: 46 mm
- Dimensions (L × W × H): 460 × 255 × 630 mm
- Weight: 17 kg
- Included accessory: Vice
- Item number (SKU): 5906810901
The Optimum OPTIdrill DQ 14 is a bench drill designed for precision drilling in metal and other materials. The machine is built from die-cast aluminium and equipped with soft-grip handles, providing stable and comfortable handling.
The drill table can be tilted ±45° and rotated 360°, offering flexibility for various drilling tasks. A clear depth scale and separate emergency stop switch contribute to safe and controlled operation.
The spindle is mounted with precision ball bearings and delivers concentric accuracy below 0.03 mm, making the machine suitable for tasks where precision is crucial. The quick-action chuck and GATES quality belt ensure efficient power transmission.
With a motor power of 0.35 kW and a speed range from 700 to 2500 revolutions per minute distributed over five steps, the machine can be adapted to different materials and drill types. The large base plate with T-slots provides stability during operation.
- Precision drilling: Concentric accuracy below 0.03 mm for high precision.
- Flexible drill table: Can be tilted ±45° and rotated 360° for versatile use.
- Solid construction: Die-cast aluminium with soft-grip handles for stability and comfort.
- Efficient power transmission: Equipped with GATES quality belt and precision ball bearings.
- Safe operation: Separate emergency stop and 24 V DC safety voltage.
Pros and cons
- High precision and stable operation
- Adjustable and rotatable drill table
- Robust aluminium construction
- Compact size suitable for workbenches
- Safety features such as emergency stop and low voltage
- Limited drilling capacity compared to larger pillar drills
- Requires manual speed adjustment via pulleys
Pros and cons
Pros
- High precision and stable operation
- Adjustable and rotatable drill table
- Robust aluminium construction
- Compact size suitable for workbenches
- Safety features such as emergency stop and low voltage
Cons
- Limited drilling capacity compared to larger pillar drills
- Requires manual speed adjustment via pulleys
Pros
- High precision and stable operation
- Adjustable and rotatable drill table
- Robust aluminium construction
- Compact size suitable for workbenches
- Safety features such as emergency stop and low voltage
Cons
- Limited drilling capacity compared to larger pillar drills
- Requires manual speed adjustment via pulleys
Specifications
- Manufacturer: Optimum
- Model: OPTIdrill DQ 14
- SKU: SM-3191040
- Column diameter: 46 mm
- Length: approx. 472 mm
- Width/depth: approx. 283 mm
- Height: approx. 634 mm
- Weight: approx. 18.5 kg
- Drilling capacity in steel (S235JR): 13 mm
- Continuous drilling capacity in steel (S235JR): 12 mm
- Drill table size: 170 × 170 mm
- T-slot size: 14 mm (2 pcs., diagonal type)
- Drill table rotation: 360°
- Drill table angle: ±45°
- Max. distance spindle – drill table: 250 mm
- Max. distance spindle – machine base: 340 mm
- Drive motor power: 0.35 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Speed range: 700–2500 min⁻¹ (5 steps)
- Spindle stroke: 52 mm
- Spindle chuck: B16
- Reach: 104 mm
The Proxxon TBH is a bench drill developed for precision work where stability and accuracy are crucial. The machine is powered by a powerful DC motor with a long service life, ensuring smooth operation and constant torque under load.
The height is easily adjusted via a rack-and-pinion mechanism with a hand crank, providing precise control over the drilling position. The spindle drive is equipped with triple pulleys that allow for three speed levels – 1080, 2400 and 4500 revolutions per minute – so the user can adapt the speed to the material.
The machine has a drilling depth scale with an adjustable stop, and the drill spindle is mounted in precision ball bearings to ensure stable operation. The spindle head has a 1/2" thread and fits an industrial-quality RÖHM geared drill chuck. In addition, the spindle can be equipped with collets (no. 28200) for extra precision work.
With a column of 45 x 500 mm, a worktable of 200 x 200 mm and a weight of approximately 10 kg, the TBH is both stable and compact, making it suitable for smaller workshops and precision tasks in metal and plastic.
- DC motor: Long-lasting motor with stable operation and low vibration.
- Stepless speed control: Three speed levels (1080, 2400 and 4500 rpm) for different materials.
- Precise height adjustment: Rack and pinion with hand crank for easy and accurate adjustment.
- Stable construction: Column and table in robust design for precision drilling.
- Compatibility: Fits RÖHM geared drill chuck and collets no. 28200.
Pros and cons
- Precise and stable operation with ball bearings in the spindle
- Long service life thanks to the DC motor
- Easy height adjustment with hand crank
- Option to use collets for precision drilling
- Compact and solid construction
- Limited drilling capacity compared to larger pillar drills
- Requires manual belt change for speed adjustment
Pros and cons
Pros
- Precise and stable operation with ball bearings in the spindle
- Long service life thanks to the DC motor
- Easy height adjustment with hand crank
- Option to use collets for precision drilling
- Compact and solid construction
Cons
- Limited drilling capacity compared to larger pillar drills
- Requires manual belt change for speed adjustment
Pros
- Precise and stable operation with ball bearings in the spindle
- Long service life thanks to the DC motor
- Easy height adjustment with hand crank
- Option to use collets for precision drilling
- Compact and solid construction
Cons
- Limited drilling capacity compared to larger pillar drills
- Requires manual belt change for speed adjustment
Specifications
- Voltage: 220–240 V
- Speeds: 1080 / 2400 / 4500 rpm
- Spindle stroke: 63 mm
- Height adjustment: 70 mm via hand crank
- Throat depth: 120 mm
- Table working surface: 200 × 200 mm
- Column: 45 × 500 mm
- Max. drilling capacity in steel: 10 mm
- Clamping range: up to 10 mm
- Weight: approx. 10 kg
- Compatible drill chuck: RÖHM geared drill chuck (1/2" thread)
- Option for collets: no. 28200
- SKU: ROL-28124
The Record DP58B Heavy Duty is a stationary bench drill constructed in steel and cast iron to ensure stability and long service life. It is equipped with a powerful induction motor that provides smooth operation and can handle both hardwood and metal materials.
The machine has a cast iron table with slots that make it possible to securely mount a vice. The table can be tilted up to 45 degrees, providing flexibility when drilling at angles. A rack and pinion system makes it easy to adjust the table height.
With 12 different speeds, the user can adjust the speed to the material, making the machine suitable for many types of drilling tasks. The spindle housing is designed to minimise vibrations and ensure precision during work.
The machine has a maximum chuck capacity of 16 mm, a weight of 55 kg and a total height of 1050 mm, making it suitable for both professional and hobby users who want a stable and precise drill.
- 12 speeds: Allows precise adjustment for different materials.
- Cast iron table: Can be tilted up to 45° and has slots for securing a vice.
- Induction motor: Delivers stable power for drilling in both wood and metal.
- Solid construction: Steel and cast iron reduce vibrations and increase precision.
- Ergonomic design: Handles and height adjustment are designed for easy use.
Pros and cons
- Robust and vibration-damping construction
- Flexible speed control with 12 steps
- Suitable for both metal and woodwork
- Cast iron table with angle adjustment
- Long service life thanks to induction motor
- Relatively heavy machine, requires fixed placement
- Requires manual belt change for speed adjustment
Pros and cons
Pros
- Robust and vibration-damping construction
- Flexible speed control with 12 steps
- Suitable for both metal and woodwork
- Cast iron table with angle adjustment
- Long service life thanks to induction motor
Cons
- Relatively heavy machine, requires fixed placement
- Requires manual belt change for speed adjustment
Pros
- Robust and vibration-damping construction
- Flexible speed control with 12 steps
- Suitable for both metal and woodwork
- Cast iron table with angle adjustment
- Long service life thanks to induction motor
Cons
- Relatively heavy machine, requires fixed placement
- Requires manual belt change for speed adjustment
Specifications
- Model: DP58B Heavy Duty
- Manufacturer: Record
- Item number (SKU): RECDP58B-EP
- Voltage: 230V
- Motor input P1/P2: 0.6 kW / 0.37 kW
- Distance to column: 165 mm
- Drilling depth: 80 mm
- Chuck to table: 371 mm
- Chuck to base: 548 mm
- Chuck capacity: 16 mm
- Speeds: 180, 250, 300, 400, 480, 580, 970, 1280, 1410, 1540, 2270, 2740 rpm
- Weight: 55 kg
- Size: H1050 × W270 × D563 mm
The Rotwerk RB18 Vario is a bench drill designed for precision drilling in metal and other materials. It is equipped with a vario drive that allows stepless spindle speed adjustment without the need to open or disassemble the machine.
The machine is powered by a 600 W motor and is designed to maintain torque throughout the entire speed range. This provides a stable and smooth drilling process, regardless of speed. The drive and construction are made in Germany, supporting the machine’s quality and durability.
The RB18 Vario has a drilling capacity of up to 18 mm in steel and a spindle taper of type MK2. It is equipped with a drill chuck ranging from 1 to 16 mm and offers two speed ranges: 290–880 min⁻¹ and 880–2400 min⁻¹. The machine has a drilling depth of 50 mm and a throat depth of 115 mm.
With a column diameter of 60 mm, a column height of 600 mm, and a total height of 765 mm, the RB18 Vario is a stable and compact machine weighing around 31 kg. It is suitable for both workshops and hobby rooms where precision and flexibility are important.
- Vario drive: Stepless adjustment of spindle speed without disassembling the machine.
- Stable torque: Maintains power throughout the entire speed range.
- German manufacturing: Drive and construction produced in Germany.
- Powerful motor: 600 W motor for demanding drilling tasks.
- Precision drilling: Drilling capacity up to 18 mm in steel.
Pros and cons
- Stepless speed control via vario drive
- Stable and robust construction
- Maintains torque at low speed
- Suitable for both professional and hobby use
- German-made drive for high quality
- Relatively high weight of about 31 kg can make it less mobile
- Limited drilling depth of 50 mm compared to larger pillar drills
Pros and cons
Pros
- Stepless speed control via vario drive
- Stable and robust construction
- Maintains torque at low speed
- Suitable for both professional and hobby use
- German-made drive for high quality
Cons
- Relatively high weight of about 31 kg can make it less mobile
- Limited drilling depth of 50 mm compared to larger pillar drills
Pros
- Stepless speed control via vario drive
- Stable and robust construction
- Maintains torque at low speed
- Suitable for both professional and hobby use
- German-made drive for high quality
Cons
- Relatively high weight of about 31 kg can make it less mobile
- Limited drilling depth of 50 mm compared to larger pillar drills
Specifications
- Model: RB18 Vario
- Manufacturer: Rotwerk
- Mains voltage: 230 V / 50 Hz
- Power: 600 W
- Drill chuck: 1–16 mm
- Spindle taper: MK2
- Drilling capacity in steel: 18 mm
- Speed range I: 290–880 min⁻¹
- Speed range II: 880–2400 min⁻¹
- Torque range I: 5.3–4.0 Nm
- Torque range II: 1.8–1.3 Nm
- Throat depth: 115 mm
- Drilling depth: 50 mm
- Column diameter: 60 mm
- Column height: 600 mm
- Total height: 765 mm
- Weight: approx. 31 kg
- SKU: RB18VARIO
The Axminster Workshop AW285PD is a bench drill designed for smaller workshops and hobby use where precision and stability are important. The machine is made of cast iron and machined steel, providing a solid base and reducing vibrations during operation.
It is powered by a 350 W induction motor that delivers smooth and quiet operation. The user can choose between five belt speeds from 600 to 2,500 revolutions per minute, allowing the speed to be adjusted for different materials and drilling tasks.
The machine is equipped with a keyless chuck that can handle drills from 1 to 13 mm, as well as a depth control that ensures uniform drill holes. The table can be adjusted in height and tilted from 45° to 0° to 45°, providing flexibility for different tasks.
A front-mounted NVR switch and an adjustable safety guard contribute to safe operation. The belt guard also has a safety switch that prevents accidental start-up during speed changes. The combination of compact size and robust construction makes the AW285PD suitable for both beginners and experienced users who need a reliable drill for precision work.
- Solid construction: Cast iron and machined steel provide stability and reduce vibrations.
- Efficient motor: 350 W induction motor with smooth and quiet operation.
- Flexible speed control: Five belt speeds from 600 to 2,500 rpm.
- Keyless chuck: Makes it quick to change drills between 1 and 13 mm.
- Adjustable table: The table can be raised, lowered and tilted for precise positioning.
- Safe operation: NVR switch and safety guard increase safety during use.
Pros and cons
- Robust and vibration-damping construction
- Smooth operation with induction motor
- Multiple speed settings for different materials
- Easy to use with keyless chuck
- Compact size suitable for smaller workshops
- Not suitable for tapping or very heavy drilling tasks
- UK 3-pin plug may require an adapter when used in Denmark
Pros and cons
Pros
- Robust and vibration-damping construction
- Smooth operation with induction motor
- Multiple speed settings for different materials
- Easy to use with keyless chuck
- Compact size suitable for smaller workshops
Cons
- Not suitable for tapping or very heavy drilling tasks
- UK 3-pin plug may require an adapter when used in Denmark
Pros
- Robust and vibration-damping construction
- Smooth operation with induction motor
- Multiple speed settings for different materials
- Easy to use with keyless chuck
- Compact size suitable for smaller workshops
Cons
- Not suitable for tapping or very heavy drilling tasks
- UK 3-pin plug may require an adapter when used in Denmark
Specifications
- Model: AW285PD
- Item number (SKU): AX107690
- Voltage: 230 V
- Power: 350 W
- Speeds: 5 steps (600–2,500 rpm)
- Chuck capacity: 1–13 mm
- Chuck type: Keyless
- Chuck stroke: 50 mm
- Column diameter: 46 mm
- Max. distance chuck–spindle: 380 mm
- Max. distance chuck–table: 285 mm
- Max. drilling in mild steel: 13 mm
- Table size: 165 × 165 mm
- Table tilt: 45° – 0° – 45°
- Throat: 105 mm
- Dimensions (L × W × H): 500 × 280 × 735 mm
- Weight: 26 kg
- Plug type: UK 3-pin
The PROMAC Bench Drill 371ELB is a stationary drill designed for precision work in metal and other hard materials. It is powered by a 400-volt motor with an output of 0.75 kW, providing stable operation and sufficient power for most drilling tasks in the workshop.
The machine has speed adjustment via a V-belt and offers 12 different speed levels in the range of 290–2300 revolutions per minute. This makes it possible to adapt the speed to different materials and drill diameters.
The drill chuck is self-tightening and can handle drills up to 16 mm in diameter. The worktable is equipped with adjustable cross slots and can support up to 40 kg, providing flexibility when clamping workpieces.
For increased safety, the machine is equipped with an emergency stop, protective screen, and a system that prevents automatic restart after a power failure. An integrated LED lamp provides directed lighting of the drilling area so that the work can be carried out with high precision.
- Motor: 400 V, 0.75 kW with 12 speed steps via V-belt.
- Drilling capacity: Up to 16 mm in steel.
- Safety: Emergency stop, protective screen, and anti-restart system.
- Worktable: Adjustable cross slots and load capacity up to 40 kg.
- Lighting: Built-in LED lamp for better visibility during work.
Pros and cons
- Stable and powerful motor for precision drilling
- Ability to adjust speed via V-belt
- Safety features such as emergency stop and protective screen
- LED work light for better visibility
- Solid construction with high weight for stability
- Requires 400 V power supply, which may limit use in private workshops
- Manual speed adjustment via V-belt can take some time
Pros and cons
Pros
- Stable and powerful motor for precision drilling
- Ability to adjust speed via V-belt
- Safety features such as emergency stop and protective screen
- LED work light for better visibility
- Solid construction with high weight for stability
Cons
- Requires 400 V power supply, which may limit use in private workshops
- Manual speed adjustment via V-belt can take some time
Pros
- Stable and powerful motor for precision drilling
- Ability to adjust speed via V-belt
- Safety features such as emergency stop and protective screen
- LED work light for better visibility
- Solid construction with high weight for stability
Cons
- Requires 400 V power supply, which may limit use in private workshops
- Manual speed adjustment via V-belt can take some time
Specifications
- Motor voltage: 400 V
- Motor power: 0.75 kW
- Spindle taper: MK-2
- Drilling capacity in steel: Ø16 mm
- Drilling depth: 80 mm
- Number of speeds: 12
- Speed range: 290–2300 min⁻¹
- Table load: 40 kg
- T-slot: 12 mm
- Weight: 74 kg
- Model number: 371ELB
The Holzmann SB4116HM 230V is a bench drill designed with a focus on stability and accuracy. The machine has a solid, polished base with T-slots, providing a secure foundation during work. The stainless steel column contributes to the machine's rigidity and precision during drilling.
The motor is an aluminium motor with IP54 protection, providing a good balance between performance and durability. The worktable can be tilted from -45° to +45° and rotated 360° around its axis, making it possible to drill at different angles and positions.
The machine comes with a self-tightening drill chuck (3–16 mm, B16), and the spindle is equipped with a protective cover for increased safety. The combination of adjustability, power and precision makes it suitable for both metal and woodwork in smaller workshops.
With a maximum drilling capacity of 16 mm, 12 speed steps from 180 to 2740 revolutions per minute and a maximum height of 1060 mm, the SB4116HM offers a flexible working platform for many types of drilling tasks.
- Powerful motor: 600 W (S1) / 900 W (S6) with IP54 protection.
- Adjustable worktable: Can be tilted from -45° to +45° and rotated 360°.
- Solid construction: Stainless steel column and polished base with T-slots.
- Flexible drilling capacity: Up to 16 mm drilling diameter and 12 speed steps.
- Safety: Spindle guard and stable base for precise work.
Pros and cons
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable
- Powerful motor with IP54 protection
- Suitable for both metal and woodwork
- Comes with self-tightening drill chuck
- Relatively high weight of 50 kg can make it less mobile
- Requires a fixed workstation and correct installation for optimal precision
Pros and cons
Pros
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable
- Powerful motor with IP54 protection
- Suitable for both metal and woodwork
- Comes with self-tightening drill chuck
Cons
- Relatively high weight of 50 kg can make it less mobile
- Requires a fixed workstation and correct installation for optimal precision
Pros
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable
- Powerful motor with IP54 protection
- Suitable for both metal and woodwork
- Comes with self-tightening drill chuck
Cons
- Relatively high weight of 50 kg can make it less mobile
- Requires a fixed workstation and correct installation for optimal precision
Specifications
- Model: SB4116HM 230V
- Motor power (S1/S6): 600 W / 900 W
- Voltage: 230 V
- Table dimensions: 250 × 250 mm
- Maximum height: 1060 mm
- Distance from drill chuck to column: 170 mm
- Maximum drilling stroke: 80 mm
- Base plate: 270 × 450 mm
- Maximum drilling capacity: 16 mm
- Spindle speed: 12 steps, 180–2740 min⁻¹
- Distance from spindle to base plate: 695 mm
- Distance between spindle and table: 495 mm
- Net weight: 50 kg
- Package dimensions (L×W×H): 895 × 490 × 290 mm
- Delivery includes: Self-tightening drill chuck 3–16 mm, B16
The Optimum OPTIdrill DQ 22 is a bench drill designed for precision work and stable operation. The machine is equipped with a separate emergency stop switch and drilling depth stop, which increases safety and allows repetitive drilling operations with high accuracy.
The drill table is precisely machined and can both tilt ±45° and rotate 360°, providing flexibility for various drilling tasks. The table has diagonally running T-slots and a surrounding coolant tray, making it suitable for metalworking.
The machine has a lever arm made of die-cast aluminium with a soft-grip handle, and the spindle is mounted with precision ball bearings to ensure concentric accuracy of less than 0.03 mm. The quick-action drill chuck and GATES quality belt contribute to smooth and reliable operation.
With a speed range from 300 to 2300 revolutions per minute distributed over 12 steps, the machine can be adapted to different materials and drill types. It is powered by a 0.55 kW motor at 230 V, making it suitable for standard workshop installations.
- Precision spindle: Guaranteed concentric accuracy below 0.03 mm.
- Flexible drill table: Can tilt ±45° and rotate 360° for versatile use.
- Solid construction: Lever arm in die-cast aluminium and heavy base plate with T-slots.
- Variable speed: 12-step gearbox with speed range from 300 to 2300 min⁻¹.
- Safe operation: Separate emergency stop and 24 V DC safety voltage.
Pros and cons
- High precision and stability during drilling
- Adjustable drill table with large freedom of movement
- Robust construction in aluminium and steel
- Wide speed range with 12 steps
- Suitable for precision work in metal
- Relatively high weight of about 42 kg can make moving difficult
- Requires a fixed workstation and correct installation for optimal stability
Pros and cons
Pros
- High precision and stability during drilling
- Adjustable drill table with large freedom of movement
- Robust construction in aluminium and steel
- Wide speed range with 12 steps
- Suitable for precision work in metal
Cons
- Relatively high weight of about 42 kg can make moving difficult
- Requires a fixed workstation and correct installation for optimal stability
Pros
- High precision and stability during drilling
- Adjustable drill table with large freedom of movement
- Robust construction in aluminium and steel
- Wide speed range with 12 steps
- Suitable for precision work in metal
Cons
- Relatively high weight of about 42 kg can make moving difficult
- Requires a fixed workstation and correct installation for optimal stability
Specifications
- Model: OPTIdrill DQ 22
- Supply voltage: 230 V
- Power: 0.55 kW
- Mains frequency: 50 Hz
- Speed range: 300–2300 min⁻¹ (12 steps)
- Column diameter: 70 mm
- Drilling capacity in steel (S235JR): 20 mm
- Continuous drilling capacity in steel (S235JR): 16 mm
- Drill table: 270 × 270 mm, T-slot 14 mm, 2 slots, rotation 360°, angle ±45°
- Max. distance spindle – drill table: 460 mm
- Max. distance spindle – machine base: 639 mm
- Spindle chuck: MK 2
- Spindle stroke: 85 mm
- Reach: 169 mm
- Dimensions (L×W×H): approx. 700 × 351 × 1006 mm
- Weight: approx. 41.7 kg
- Load capacity drill table: 15 kg
The Proxxon TBM 220 is a small but powerful bench drill designed for precision work. It can drill holes down to 0.5 mm, making it suitable for tasks where accuracy and control are more important than raw power.
The machine is equipped with a ground worktable made of die-cast aluminium measuring 220 x 120 mm, providing a stable and flat surface. The table has both a parallel stop and a scale, making it easier to work accurately with repeated drillings.
The hard chrome-plated steel column measuring 20 x 280 mm ensures stability, while the die-cast aluminium arm with precise guides contributes to the machine’s rigid and low-vibration construction.
The TBM 220 is powered by a quiet and durable VDE-tested motor with a three-step belt drive, providing three different speeds: 1,800, 4,700, and 8,500 revolutions per minute. By changing the belt, the user can choose between high speed for small drills and lower speed with increased torque for larger drills.
The machine has a spindle stroke of 30 mm and a throat depth of 140 mm (distance from the centre of the column to the centre of the drill). It comes with six MICROMOT collets in sizes 1.0 – 3.2 mm and a thread for mounting a keyed drill chuck.
- Precision drilling: Can drill holes down to 0.5 mm in diameter.
- Three-step belt drive: Allows for three speeds – 1,800, 4,700, and 8,500 rpm.
- Stable construction: Ground worktable and hard chrome-plated steel column ensure precision.
- Quality motor: VDE-tested motor with low noise level and long service life.
- Included collets: Six MICROMOT collets from 1.0 to 3.2 mm.
Pros and cons
- High precision and stability for small drilling tasks
- Three speed levels adapted for different materials and drill sizes
- Compact and robust die-cast aluminium construction
- Quiet and reliable motor
- Suitable for model building, electronics, and fine mechanics
- Limited drilling capacity for larger materials
- Speed change requires manual adjustment of the belt
Pros and cons
Pros
- High precision and stability for small drilling tasks
- Three speed levels adapted for different materials and drill sizes
- Compact and robust die-cast aluminium construction
- Quiet and reliable motor
- Suitable for model building, electronics, and fine mechanics
Cons
- Limited drilling capacity for larger materials
- Speed change requires manual adjustment of the belt
Pros
- High precision and stability for small drilling tasks
- Three speed levels adapted for different materials and drill sizes
- Compact and robust die-cast aluminium construction
- Quiet and reliable motor
- Suitable for model building, electronics, and fine mechanics
Cons
- Limited drilling capacity for larger materials
- Speed change requires manual adjustment of the belt
Specifications
- Model: TBM 220
- Article number (SKU): ROL-28128
- Voltage: 220–240 V
- Power: 85 W
- Frequency: 50–60 Hz
- Speed: 1,800 / 4,700 / 8,500 rpm
- Throat depth: 140 mm
- Spindle stroke: 30 mm
- Worktable: 220 x 120 mm, ground die-cast aluminium
- Column: 20 x 280 mm, hard chrome-plated steel
- Collets: 6 pcs. MICROMOT (1.0 – 3.2 mm)
- Thread for drill chuck: 3/8"
- EAN / Barcode: ROL-28128
The Axminster Professional AP20BD is a bench drill designed to deliver precise results and stable operation in workshop environments. The machine is equipped with a precision spindle running in NSK ball bearings, which reduces vibrations and ensures smooth rotation during drilling.
The drive system uses Multi-V belts, which provide good grip and contribute to quiet and stable operation. The spindle unit is solidly integrated into the headstock, increasing the machine's overall rigidity and precision.
Safety is prioritised with an electrically locked chuck guard that prevents accidental start-up, as well as a safety switch that cuts power when the belt guard is opened. A built-in LED work light provides good illumination of the work area.
The machine has an ergonomic cast iron handle with a rubber grip for comfortable handling. The keyless chuck allows quick bit changes, and the table can be adjusted via rack and pinion. An improved depth stop allows drilling with high accuracy.
With its compact size and solid construction, the AP20BD is suitable for both professional workshops and demanding hobby users who want a stable and precise drill.
- Precision spindle with NSK bearings: Provides stable and vibration-free drilling.
- Multi-V belt drive: Ensures smooth power transmission and low noise level.
- Safety switch: Prevents operation with open cover or without guard.
- LED work light: Improves visibility during work.
- Ergonomic design: Cast iron handle with rubber grip for comfortable handling.
- Keyless chuck: Quick and easy bit changes.
Pros and cons
- Robust construction with high precision
- Low vibration and stable operation
- Safety switch and protection against accidental start
- Easy adjustment of table and drilling depth
- Built-in LED lighting for better work light
- Relatively high weight of 82 kg may limit mobility
- Requires a fixed workspace with plenty of room
- Manual speed adjustment via pulleys
Pros and cons
Pros
- Robust construction with high precision
- Low vibration and stable operation
- Safety switch and protection against accidental start
- Easy adjustment of table and drilling depth
- Built-in LED lighting for better work light
Cons
- Relatively high weight of 82 kg may limit mobility
- Requires a fixed workspace with plenty of room
- Manual speed adjustment via pulleys
Pros
- Robust construction with high precision
- Low vibration and stable operation
- Safety switch and protection against accidental start
- Easy adjustment of table and drilling depth
- Built-in LED lighting for better work light
Cons
- Relatively high weight of 82 kg may limit mobility
- Requires a fixed workspace with plenty of room
- Manual speed adjustment via pulleys
Specifications
- Model: AP20BD
- Voltage: 230 V
- Power: 750 W
- Speed range: 120 – 2,580 rpm
- Chuck capacity: 1 – 16 mm (keyless)
- Chuck travel: 80 mm
- Morse taper: 2 MT
- Spindle taper: 2 MT
- Column diameter: 80 mm
- Max. drilling in mild steel: 20 mm
- Max. distance chuck to base: 500 mm
- Max. distance chuck to table: 325 mm
- Table size: 290 × 290 mm
- Table tilt: 45° – 0° – 45°
- Base size: 450 × 270 mm
- Throat depth: 178 mm
- Overall size (L × W × H): 670 × 360 × 1,020 mm
- Net weight: 82 kg
- Plug type: EU 2-pin plug
- Classification: Tradesman/Professional
The PROMAC Bench Drill 212 is a stationary drill designed for precision work in metal and other hard materials. It is equipped with a single-speed motor and speed adjustment via V-belt, providing stable operation and the ability to adapt the speed to different drilling tasks.
The machine comes with a 16 mm self-tightening drill chuck, protective guard and emergency stop button, which increase safety during use. The table is adjustable and has cross slots, making it easier to securely fasten workpieces during drilling.
A built-in safety system prevents automatic restart after a power failure, contributing to a safer working process. The compact size and weight of 45 kg make it suitable for both workshops and smaller production environments where a stable and precise drill is needed.
- Drilling capacity of 16 mm: Suitable for drilling in steel and other metals.
- Speed adjustment via V-belt: Provides flexibility depending on material and drill type.
- Self-tightening drill chuck: Quick and secure fastening of drills without the use of a key.
- Adjustable table with cross slots: Enables precise positioning of workpieces.
- Safety system against automatic start: Increases safety in the event of a power failure.
Pros and cons
- Stable construction suitable for workshop use
- Easy speed adjustment via V-belt
- Safety features such as emergency stop and protective guard
- Adjustable table for flexible working position
- Only one motor speed may limit flexibility for special tasks
- Requires manual belt change to adjust speed
Pros and cons
Pros
- Stable construction suitable for workshop use
- Easy speed adjustment via V-belt
- Safety features such as emergency stop and protective guard
- Adjustable table for flexible working position
Cons
- Only one motor speed may limit flexibility for special tasks
- Requires manual belt change to adjust speed
Pros
- Stable construction suitable for workshop use
- Easy speed adjustment via V-belt
- Safety features such as emergency stop and protective guard
- Adjustable table for flexible working position
Cons
- Only one motor speed may limit flexibility for special tasks
- Requires manual belt change to adjust speed
Specifications
- Motor voltage: 230 V
- Motor power: 0.37 kW
- Spindle taper: MK-2
- Drilling capacity in steel: Ø16 mm
- Drilling depth: 80 mm
- Number of speeds: 5 steps
- Speed range: 490–2510 min⁻¹
- Max. table load: 30 kg
- T-slot: 12 mm
- Weight: 45 kg
- Dimensions (A–J): A: 970 mm, B: 560 mm, C: 640 mm, D: 168 mm, E: 73 mm, F: 40 mm, G: 445 mm, H: 320 mm, I: 265 mm, J: 265 mm
- Article number (SKU): 212
Other products
The Holzmann GBM25 400V is a stationary bench drill designed for demanding drilling tasks. The machine is equipped with a 400V motor with two stages and a total output of 650/900 W, providing sufficient power for both metal and wood processing.
The drill head can be rotated 360 degrees and adjusted in height, providing great flexibility for various tasks. The vibration-free and robust construction ensures precise results, even during prolonged use.
The machine has eight different speeds, making it possible to adjust the drilling speed to the material. The table is equipped with T-slots and a T-fence, providing stable clamping of workpieces during operation.
With a maximum drilling capacity of 25 mm and thread cutting up to M10, the GBM25 400V is suitable for both professional and advanced hobby users who want a reliable and powerful drill for workshop use.
- Powerful motor: 650/900 W two-stage motor with 400V operating voltage.
- Flexible drilling unit: The drill head can be rotated 360° and adjusted in height.
- Precision work: Vibration-free construction and solid base for stable drilling.
- Variable speed: 8 speeds adapted for different materials.
- Large drilling capacity: Up to 25 mm drilling diameter and thread cutting up to M10.
Pros and cons
- Robust and vibration-free construction
- Two-stage motor with high power
- 360° rotatable and height-adjustable drill head
- Multiple speed settings for precise control
- Suitable for both metal and wood processing
- Requires 400V power supply, which limits use in regular households
- Relatively heavy and stationary – not suitable for mobile use
Pros and cons
Pros
- Robust and vibration-free construction
- Two-stage motor with high power
- 360° rotatable and height-adjustable drill head
- Multiple speed settings for precise control
- Suitable for both metal and wood processing
Cons
- Requires 400V power supply, which limits use in regular households
- Relatively heavy and stationary – not suitable for mobile use
Pros
- Robust and vibration-free construction
- Two-stage motor with high power
- 360° rotatable and height-adjustable drill head
- Multiple speed settings for precise control
- Suitable for both metal and wood processing
Cons
- Requires 400V power supply, which limits use in regular households
- Relatively heavy and stationary – not suitable for mobile use
Specifications
- Motor power (S1): 650/900 W
- Voltage: 400V
- Reach: 255 mm
- Table size: 500 × 350 mm
- Spindle taper: MK3/MT3
- Maximum drilling capacity: 25 mm
- Maximum thread size: M10
- Spindle stroke: 120 mm
- Column diameter: 100 mm
- Base: 500 × 400 mm
- T-slot: 14 mm
The Optimum OPTIdrill DQ 18 is a bench drill designed for precision drilling in metal and other hard materials. The machine is equipped with a precision spindle with ball bearings and a high-quality quick drill chuck, ensuring stable operation and accurate results.
The drill table is made of robust material and can both tilt ±45° and rotate 360°, providing flexibility for various drilling tasks. The table has diagonally running T-slots and a surrounding coolant tray, making it suitable for precision work and efficient cooling.
The machine is powered by a 0.45 kW motor with five speed levels, ranging from 600 to 2400 revolutions per minute. It is equipped with a GATES quality belt for stable power transmission and low vibration during operation.
Safety is prioritised with a separate emergency stop and low-voltage control at 24 V DC. The solid column and base plate with T-slots provide the machine with a stable base, while the feed arm in die-cast aluminium with soft-grip handle ensures comfortable handling.
- Precision spindle: Ball bearings and concentric accuracy under 0.03 mm.
- Adjustable drill table: Can tilt ±45° and rotate 360° for flexible machining.
- Stable construction: Strong column and ribbed base plate with T-slots.
- Safe handling: Separate emergency stop and 24 V DC safety voltage.
- Variable speed: Five gears from 600 to 2400 revolutions per minute.
Pros and cons
- High precision and stable operation
- Flexible drill table with tilt and rotation
- Solid construction with quality components
- Safety features with emergency stop and low voltage
- Suitable for both metal and woodwork
- Relatively heavy construction at approx. 28.5 kg may require a fixed workstation
- Manual speed adjustment via pulleys
Pros and cons
Pros
- High precision and stable operation
- Flexible drill table with tilt and rotation
- Solid construction with quality components
- Safety features with emergency stop and low voltage
- Suitable for both metal and woodwork
Cons
- Relatively heavy construction at approx. 28.5 kg may require a fixed workstation
- Manual speed adjustment via pulleys
Pros
- High precision and stable operation
- Flexible drill table with tilt and rotation
- Solid construction with quality components
- Safety features with emergency stop and low voltage
- Suitable for both metal and woodwork
Cons
- Relatively heavy construction at approx. 28.5 kg may require a fixed workstation
- Manual speed adjustment via pulleys
Specifications
- Manufacturer: Optimum
- Model: OPTIdrill DQ 18
- SKU: SM-3191042
- Column diameter: 60 mm
- Length: approx. 568 mm
- Width/depth: approx. 319 mm
- Height: approx. 849 mm
- Weight: approx. 28.5 kg
- Drilling capacity steel (S235JR): 15.9 mm
- Continuous drilling capacity steel (S235JR): 14 mm
- Drill table size: 200 × 200 mm
- T-slot size: 14 mm (2 pcs, diagonal type)
- Rotation: 360°
- Angle: ±45°
- Load capacity: 12 kg
- Max. distance spindle – drill table: 319 mm
- Drive motor power: 0.45 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
- Max. distance spindle – machine base: 518 mm
- Speed range: 600–2400 min⁻¹ (5 steps)
- Spindle chuck: MK 2
- Feed stroke: 65 mm
- Reach: 127 mm
The Axminster Professional AP340PD is a compact bench drill that incorporates many of the features of larger models in a more space-saving design. It is constructed from cast iron to ensure stability and vibration damping during use.
The machine is powered by a 550 W induction motor that delivers smooth operation and low noise levels. It offers 12 belt speeds from 210 to 2,580 revolutions per minute, making it suitable for various drilling tasks in both wood and metal.
The drill chuck is keyless and clamps from 1 to 16 mm, mounted on a 2MT spindle. The table can be height-adjusted via rack and pinion and can be swung away so that the machine base can be used as a work support.
Safety is prioritised with an electrically lockable chuck guard, safety switch on the belt cover and an emergency stop function on the on/off button. An integrated LED work light provides better visibility during operation.
The machine is suitable for professional workshops, educational institutions and users who want a precise and solid drill for stationary use.
- Cast iron construction: Provides high stability and reduces vibrations.
- 12 belt speeds: From 210 to 2,580 rpm for flexible drilling control.
- Keyless drill chuck: 1–16 mm capacity mounted on 2MT spindle.
- Safety switch: Prevents operation with open belt cover and protects the user.
- LED work light: Improves visibility during precision work.
- Adjustable table: Height adjustment via rack and pinion, can be swung away for larger workpieces.
Pros and cons
- Solid and vibration-damping cast iron construction
- Wide speed range with 12 steps
- Keyless drill chuck for quick tool changes
- Built-in LED light and emergency stop for increased safety
- Suitable for both professional and educational environments
- Relatively heavy construction at 63 kg requires fixed placement
- Not suitable for use with mortising attachments
- Supplied with UK plug, which may require an adapter
Pros and cons
Pros
- Solid and vibration-damping cast iron construction
- Wide speed range with 12 steps
- Keyless drill chuck for quick tool changes
- Built-in LED light and emergency stop for increased safety
- Suitable for both professional and educational environments
Cons
- Relatively heavy construction at 63 kg requires fixed placement
- Not suitable for use with mortising attachments
- Supplied with UK plug, which may require an adapter
Pros
- Solid and vibration-damping cast iron construction
- Wide speed range with 12 steps
- Keyless drill chuck for quick tool changes
- Built-in LED light and emergency stop for increased safety
- Suitable for both professional and educational environments
Cons
- Relatively heavy construction at 63 kg requires fixed placement
- Not suitable for use with mortising attachments
- Supplied with UK plug, which may require an adapter
Specifications
- Model: AP340PD
- Article number (SKU): AX107704
- Spindle distance: 420 mm x 250 mm
- Drill chuck: 1–16 mm keyless
- Column diameter: 70 mm
- Max. distance from chuck to spindle: 530 mm
- Max. distance from chuck to table: 340 mm
- Max. drilling capacity in mild steel: 16 mm
- Morse taper: 2 MT
- Spindle taper: 2 MT
- Power: 550 W induction motor
- Speed: 210–2,580 rpm (12 steps)
- Table size: 260 mm x 260 mm
- Table tilt: 45° – 0° – 45°
- Throat: 165 mm
- Voltage: 230 V
- Weight: 63 kg
- Dimensions (L x W x H): 640 x 370 x 1,000 mm
- Plug type: UK plug with 3 pins
- User level: Detail/professional use
The PROMAC Bench Drill JDT-2512V is a stationary machine designed for precision drilling in metal and other hard materials. It is built in cast iron, which provides high stability and reduces vibrations during operation.
The machine has a drilling capacity of up to 23 mm in mild steel and a spindle speed that can be continuously adjusted in the range of 100–2100 revolutions per minute. This makes it possible to adapt the speed to different materials and drilling tasks.
The worktable can be tilted ±45° and has a weight capacity of 60 kg, providing flexibility for angled drilling. The table and base are made of cast iron to ensure a solid working surface.
With a spindle travel of 100 mm, a column diameter of 70 mm, and a total height of 1040 mm, the machine is suitable for both small and medium-sized workpieces. It is equipped with an MT-2 spindle taper and a B16 drill chuck with a capacity from 1–16 mm.
- Variable speed: Adjustable spindle speed from 100 to 2100 rpm.
- Stable construction: Cast iron in head, table, and base for maximum stability.
- Large drilling capacity: Up to 23 mm in mild steel.
- Flexible worktable: Can be tilted ±45° and supports up to 60 kg.
- Precision spindle: MT-2 taper and 100 mm spindle travel for accurate drilling.
Pros and cons
- Robust and vibration-damping cast iron construction
- Variable speed adapted for different materials
- Large drilling capacity and precise spindle control
- Flexible worktable with tilt function
- Relatively high weight of 91 kg may limit mobility
- Requires a fixed workstation and proper installation for optimal use
Pros and cons
Pros
- Robust and vibration-damping cast iron construction
- Variable speed adapted for different materials
- Large drilling capacity and precise spindle control
- Flexible worktable with tilt function
Cons
- Relatively high weight of 91 kg may limit mobility
- Requires a fixed workstation and proper installation for optimal use
Pros
- Robust and vibration-damping cast iron construction
- Variable speed adapted for different materials
- Large drilling capacity and precise spindle control
- Flexible worktable with tilt function
Cons
- Relatively high weight of 91 kg may limit mobility
- Requires a fixed workstation and proper installation for optimal use
Specifications
- Model: JDT-2512V
- Drilling capacity (mild steel): 23 mm
- Tapping capacity (mild steel): M14
- Chuck size: B16 (1–16 mm)
- Spindle travel: 100 mm
- Distance chuck to base: 500 mm
- Distance chuck to table (max): 255 mm
- Table size: 246 × 278 mm
- Table travel: 224 mm
- Table tilt: ±45°
- Table weight capacity: 60 kg
- Head travel: 345 mm
- Spindle taper: MT-2
- Column diameter: Ø70 mm
- Spindle speed range: 100–2100 rpm
- Pulley material: Cast iron
- Base size: 340 × 520 mm
- Base working area: 258 × 275 mm
- Material (table, base, head): Cast iron
- Spindle distance to column: 203 mm
- Overall dimensions (L×W×H): 690 × 410 × 1040 mm
- Net weight: 91 kg
The Holzmann SB4115N 230V is a stable bench drill designed for precision work in wood and metal. The machine is built with a solid and brushed column that ensures stability during drilling, and it has a worktable that can tilt 45 degrees to each side and rotate 360 degrees for flexible positioning.
The motor is made of aluminium and has IP54 protection, providing a robust and reliable construction. A transparent guard covers the drill chuck, while the handle with integrated depth scale allows for high-precision drilling.
The machine comes with a self-tightening drill chuck and has a maximum drilling capacity of 16 mm. The variable spindle speed ranges from 200 to 2500 revolutions per minute, making it suitable for various materials and drilling tasks.
With a net weight of 30 kg and compact dimensions, the SB4115N 230V is a practical solution for both smaller workshops and hobby users who want a stable and versatile drill.
- Solid construction: Brushed column and stable base ensure precise drilling operations.
- Swivelling worktable: Can tilt +45°/-45° and rotate 360° for flexible use.
- Aluminium motor IP54: Provides reliability and protection against dust and moisture.
- Precise depth scale: Handle with integrated measuring scale for accurate drilling.
- Variable speed: 12 steps from 200 to 2500 revolutions per minute.
Pros and cons
- Robust and stable construction
- Flexible worktable with tilt and rotation function
- Self-tightening drill chuck included
- Precise depth scale for controlled drilling
- Suitable for both wood and metal
- Relatively heavy compared to smaller hobby drills
- Requires a fixed workspace due to weight and size
Pros and cons
Pros
- Robust and stable construction
- Flexible worktable with tilt and rotation function
- Self-tightening drill chuck included
- Precise depth scale for controlled drilling
- Suitable for both wood and metal
Cons
- Relatively heavy compared to smaller hobby drills
- Requires a fixed workspace due to weight and size
Pros
- Robust and stable construction
- Flexible worktable with tilt and rotation function
- Self-tightening drill chuck included
- Precise depth scale for controlled drilling
- Suitable for both wood and metal
Cons
- Relatively heavy compared to smaller hobby drills
- Requires a fixed workspace due to weight and size
Specifications
- Model: SB4115N-230V
- Motor power S1/S6: 400 W / 600 W
- Voltage: 230 V
- Table dimensions: 200 × 200 mm
- Maximum height: 850 mm
- Distance from drill chuck to column: 127 mm
- Machine dimensions (without long chip table): 550 × 370 × 550 mm
- Maximum stroke length: 60 mm
- Base plate: 350 × 210 mm
- Maximum drilling capacity: 16 mm
- Spindle speed: 12 steps, 200–2500 min⁻¹
- Distance from spindle to base plate: 525 mm
- Distance between spindle and table: 360 mm
- Net weight: 30 kg
- Packaging dimensions (L×W×H): 690 × 430 × 260 mm
The Holzmann SB4116HM 400V is a stable bench drill designed for precision work. It has a solid and polished base with T-slots that provide a secure foundation during drilling.
The machine is powered by an aluminium motor with IP54 protection, making it resistant to dust and moisture. The column is made of stainless, polished steel, contributing to both strength and durability.
The worktable can be tilted from -45° to +45° and rotated 360° around its centre, providing great flexibility for various drilling tasks. A protective cover around the spindle increases safety during use.
The delivery includes a self-tightening drill chuck (3–16 mm, B16), so the machine is ready for use upon delivery.
- Powerful motor: 600 W (S1) / 900 W (S6) with 400 V operating voltage.
- Flexible worktable: Can be tilted from -45° to +45° and rotated 360°.
- Robust construction: Stainless steel column and solid base with T-slots.
- Safety: Protective cover around the spindle.
- Precision: Maximum drilling capacity of 16 mm and 12 speed steps from 180 to 2740 revolutions per minute.
Pros and cons
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable for flexible drilling
- Powerful motor with multiple speed settings
- Delivered with self-tightening drill chuck
- Requires 400 V power supply, which is not available in all workshops
- The weight of 50 kg makes it less mobile
Pros and cons
Pros
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable for flexible drilling
- Powerful motor with multiple speed settings
- Delivered with self-tightening drill chuck
Cons
- Requires 400 V power supply, which is not available in all workshops
- The weight of 50 kg makes it less mobile
Pros
- Stable and robust stainless steel construction
- Adjustable and rotatable worktable for flexible drilling
- Powerful motor with multiple speed settings
- Delivered with self-tightening drill chuck
Cons
- Requires 400 V power supply, which is not available in all workshops
- The weight of 50 kg makes it less mobile
Specifications
- Model: SB4116HM-400V
- Motor power (S1/S6): 600 W / 900 W
- Voltage: 400 V
- Table dimensions: 250 × 250 mm
- Maximum height: 1060 mm
- Distance from drill chuck to column: 170 mm
- Maximum stroke length: 80 mm
- Base plate: 270 × 450 mm
- Maximum drilling capacity: 16 mm
- Spindle speed: 12 steps, 180–2740 min⁻¹
- Distance from spindle to base plate: 695 mm
- Maximum distance between spindle and table: 495 mm
- Net weight: 50 kg
- Package dimensions (L×W×H): 895 × 490 × 290 mm
- Delivery includes: Self-tightening drill chuck 3–16 mm, B16
The Holzmann SB4115N 400V is a stationary bench drill designed to deliver stable and precise drilling. The machine is built with a solid and brushed column that ensures rigidity during operation, and an aluminium motor with IP54 protection that contributes to operational reliability and long service life.
The worktable can rotate 360 degrees and tilt from +45 to -45 degrees, providing flexibility when drilling at different angles. An integrated depth scale on the handle makes it possible to control the drilling depth precisely.
The machine comes with a self-tightening drill chuck and has a maximum drilling capacity of 16 mm. The spindle speed can be adjusted in 12 steps from 200 to 2500 revolutions per minute, allowing it to be adapted to different materials and drilling tasks.
With a maximum height of 850 mm and a net weight of 30 kg, the SB4115N 400V is a compact yet stable machine that is well suited for both smaller workshops and hobby users who want precision and reliability in their drilling work.
- Solid construction: Sturdy column and base ensure stability during drilling.
- Adjustable worktable: Can rotate 360° and tilt ±45° for flexible use.
- Aluminium motor IP54: Provides operational reliability and protection against dust and moisture.
- Depth scale: Allows drilling with precise depth control.
- Variable speed: 12 steps from 200 to 2500 revolutions per minute.
Pros and cons
- Stable and robust construction
- Flexible worktable with tilt and rotation function
- Self-tightening drill chuck included
- Possibility for precise depth control
- Suitable for both metal and woodwork
- Relatively heavy in relation to transport and movement
- Requires a fixed workstation for optimal stability
Pros and cons
Pros
- Stable and robust construction
- Flexible worktable with tilt and rotation function
- Self-tightening drill chuck included
- Possibility for precise depth control
- Suitable for both metal and woodwork
Cons
- Relatively heavy in relation to transport and movement
- Requires a fixed workstation for optimal stability
Pros
- Stable and robust construction
- Flexible worktable with tilt and rotation function
- Self-tightening drill chuck included
- Possibility for precise depth control
- Suitable for both metal and woodwork
Cons
- Relatively heavy in relation to transport and movement
- Requires a fixed workstation for optimal stability
Specifications
- Model: SB4115N 400V
- Motor power S1 / S6: 400 W / 600 W
- Voltage: 230 V
- Table dimensions: 193 × 200 mm
- Maximum height: 850 mm
- Distance from drill chuck to column: 127 mm
- Maximum stroke length: 60 mm
- Base plate: 350 × 210 mm
- Maximum drilling capacity: 16 mm
- Spindle speed: 12 steps, 200–2500 min⁻¹
- Distance from spindle to base plate: 525 mm
- Maximum distance between spindle and table: 360 mm
- Net weight: 30 kg
- Package dimensions (L × W × H): 690 × 430 × 260 mm
- Scope of delivery: Self-tightening drill chuck
The Holzmann GBM25T 400V is a stationary bench drill designed for demanding drilling tasks. The machine is equipped with a gearbox, allowing the user to control drilling with high precision and adjust the speed according to the material.
The solid and vibration-free construction ensures stable operation, while the integrated T-fence in the table provides good support during work. The drill head can be rotated 360 degrees and adjusted in height, making the machine flexible in use.
The GBM25T has eight different speeds and two powerful motor stages, making it suitable for both fine drilling and more demanding tasks. The combination of robust design and adjustable features makes it a versatile tool in both professional and semi-professional workshops.
- Powerful motor: 650/900 W motor with 400V operation ensures high performance.
- Precise drilling control: Gear system and 8 speeds provide flexibility in work.
- 360° rotatable drill head: Enables drilling from multiple angles.
- Solid construction: Vibration-free and robust build for stable operation.
- Adjustable table: Table with T-fence and adjustable height for precise positioning.
Pros and cons
- Powerful and stable construction
- Possibility of precise speed adjustment
- Rotatable and height-adjustable drill head
- Suitable for both metal and woodwork
- Requires 400V power supply
- Relatively heavy and stationary – not suitable for mobile use
Pros and cons
Pros
- Powerful and stable construction
- Possibility of precise speed adjustment
- Rotatable and height-adjustable drill head
- Suitable for both metal and woodwork
Cons
- Requires 400V power supply
- Relatively heavy and stationary – not suitable for mobile use
Pros
- Powerful and stable construction
- Possibility of precise speed adjustment
- Rotatable and height-adjustable drill head
- Suitable for both metal and woodwork
Cons
- Requires 400V power supply
- Relatively heavy and stationary – not suitable for mobile use
Specifications
- Motor power (S1): 650/900 W
- Voltage: 400V
- Reach: 255 mm
- Table size: 250 × 290 mm
- Taper: MK3/MT3
- Max. drilling capacity: 25 mm
- Max. thread size: M10
- Spindle stroke: 120 mm
- Speed range: 105–2900 min⁻¹
- Column diameter: 100 mm
- Base: 570 × 340 mm
- T-slot: 14 mm
Different types of drill presses
There are several types of drill presses that vary in size, function and area of use. The choice depends on how much space you have and what materials you work with.
1. Standard drill presses
These compact models are ideal for hobby workshops and smaller projects. They usually have moderate motor power and a simple adjustable table. They are easy to place on a workbench and require minimal maintenance.
2. Pillar drill presses
Pillar drill presses are larger and more powerful than standard models. They stand on the floor and make it possible to drill in larger workpieces. They are well suited for professional workshops and demanding tasks where precision and power are crucial.
3. Magnetic drill presses
Magnetic drill presses are mainly used for metalworking. They can be attached to steel surfaces using an electromagnet, making them ideal for precision drilling in steel structures and pipes. They are often more expensive but very flexible.
4. CNC-controlled drill presses
The most advanced models can be digitally programmed and are used for series production or complex drilling tasks. They are usually intended for professional users who place high demands on accuracy and repeatability.
Different brands of drill presses
The market for drill presses includes many manufacturers, each with its own focus areas and strengths.
Bosch
Bosch offers a wide range of drill presses for both hobby and professional use. The machines are known for high build quality, user-friendliness and precision. Most models have stepless speed control and solid construction.
Einhell
Einhell manufactures affordable machines aimed at DIY users. They are easy to use and well suited for common drilling tasks in wood and metal. The brand is popular for its combination of price and functionality.
Scheppach
Scheppach is known for robust machines with good performance for the price. Their drill presses often have powerful motors and stable tables, making them suitable for both hobby and semi-professional use.
Metabo
Metabo focuses on professional quality and durability. Their machines have high precision, powerful motors and advanced safety features. They are an obvious choice for workshops where the machine is used frequently.
Holzmann
Holzmann offers a wide range of drill presses, from compact models to large pillar machines. The brand is known for solid construction and a good balance between price and quality.
Frequently asked questions
What can a drill press be used for?
A drill press is used to drill precise and straight holes in wood, metal, plastic and other materials. It is ideal for repeated drilling tasks where handheld machines do not provide sufficient precision.
How large a drill press do I need?
It depends on the materials and workpieces you are working with. For small hobby projects, a compact model is often sufficient, while larger and more powerful machines are necessary for metalworking or large wooden pieces.
How do you maintain a drill press?
Keep the machine clean from dust and chips, lubricate moving parts regularly and check belts and bearings for wear. Make sure the drill chuck and table are properly adjusted to maintain precision.
Are drill presses safe to use?
Yes, if used correctly. Always wear safety glasses and ensure the workpiece is securely clamped. Choose a machine with a protective screen and emergency stop for extra safety.
Can a drill press drill into metal?
Yes, most models can drill into metal, but it requires the right drill bit and appropriate speed. Use cutting oil to reduce heat build-up and extend the drill bit’s lifespan.
Læs også:
